Xerox WorkCentre 6605

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-23

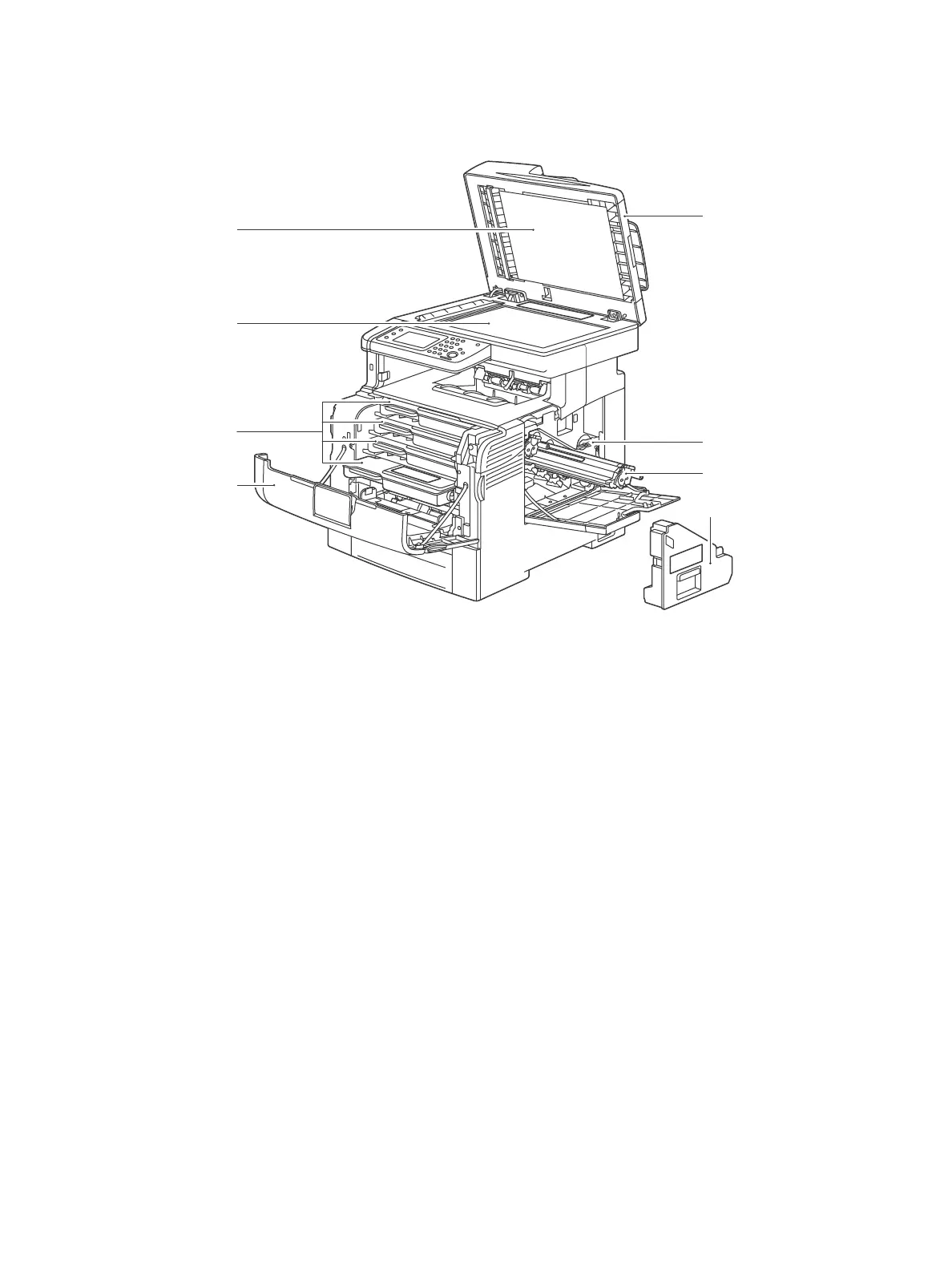

WorkCentre 6605 Internal Parts
1. Front Door 5. Duplex Automatic Document Feeder
2. Toner Cartridges 6. Waste Cartridge Lock
3. Document Glass 7. Imaging Units
4. Document Cover 8. Waste Cartridge
1
3
4
5
6
7
8
2
