Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-67
Bypass Tray Sensor
PL13.2.4

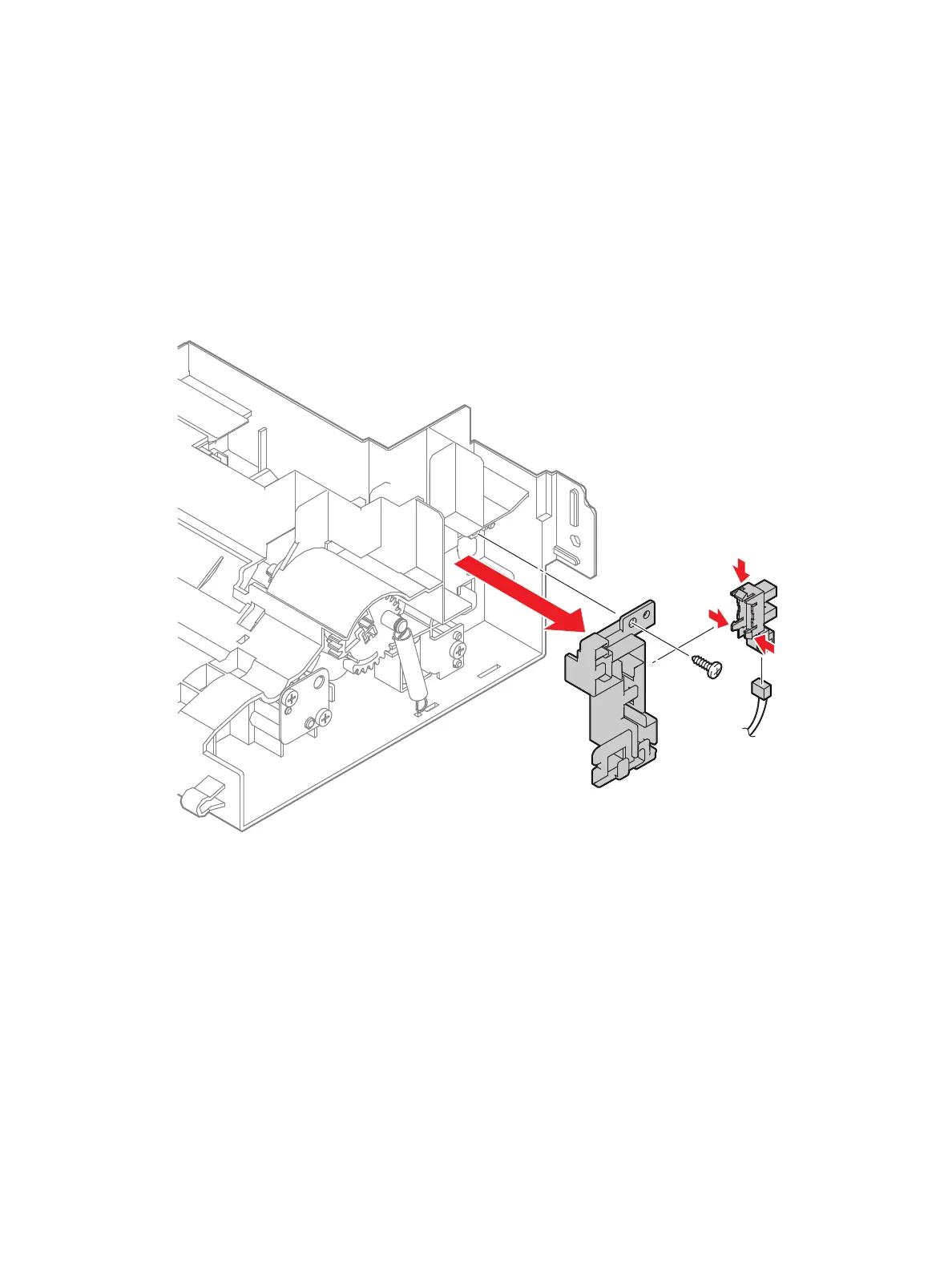

1. Remove the Bypass Tray Frame Assembly. (page 4-65)
2. Remove the screw (silver, tapping, 8mm) that attaches the Bypass Tray Harness Guide (PL13.2.6)
and remove the Bypass Tray Harness Guide together with the Bypass Tray Sensor (Interlock Photo
Sensor - PL13.2.4).
3. Unplug connector P/J211 of the Bypass Tray Sensor.
4. Release the hook holding the Bypass Tray Sensor and remove the sensor.
To Next Page
