Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-58

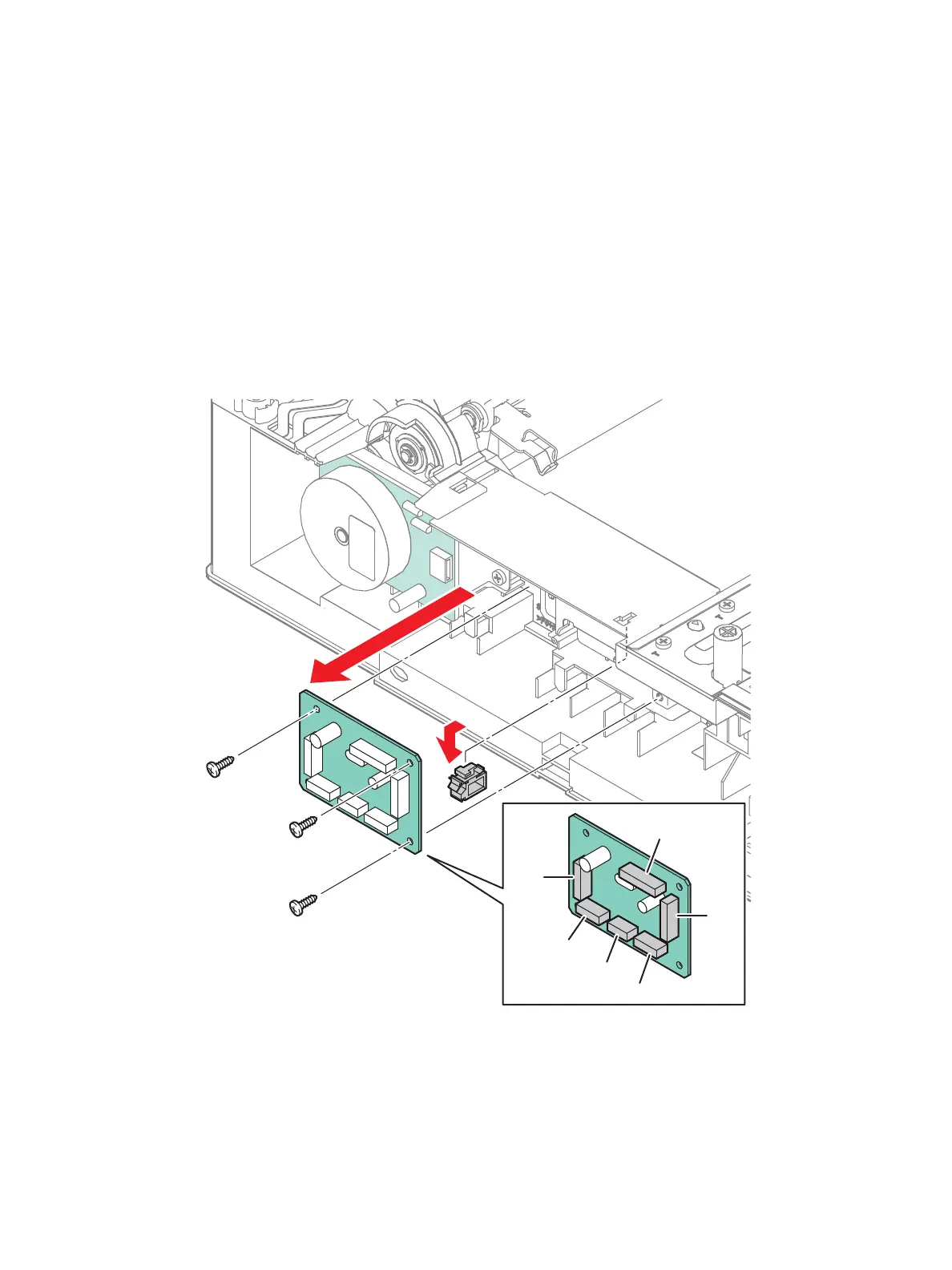

550 Option Feeder Board
PL10.1.10
Note: When installing or removing this part, you do not need to separate the printer from the
Optional 550-Sheet Feeder.
1. Remove the 550 Option Cassette Assembly from the Optional 550-Sheet Feeder.
2. Remove the 550 Option Left-Side Cover. (page 4-54)
3. Disengage the all connectors on the 550 Option Feeder Board (PL10.1.10).
4. Remove the clamp secured on the frame by sliding it to the left.
5. Remove the three screws (silver, tapping, 8mm) that attach the 550 Option Feeder Board to the
feeder and remove the board.
s6600-121
420
421
423
419
422
1
