Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-7
UICC
SFP Control Panel Assembly
PL1.1.1
1. Open the Front Door Assembly (page 4-128).

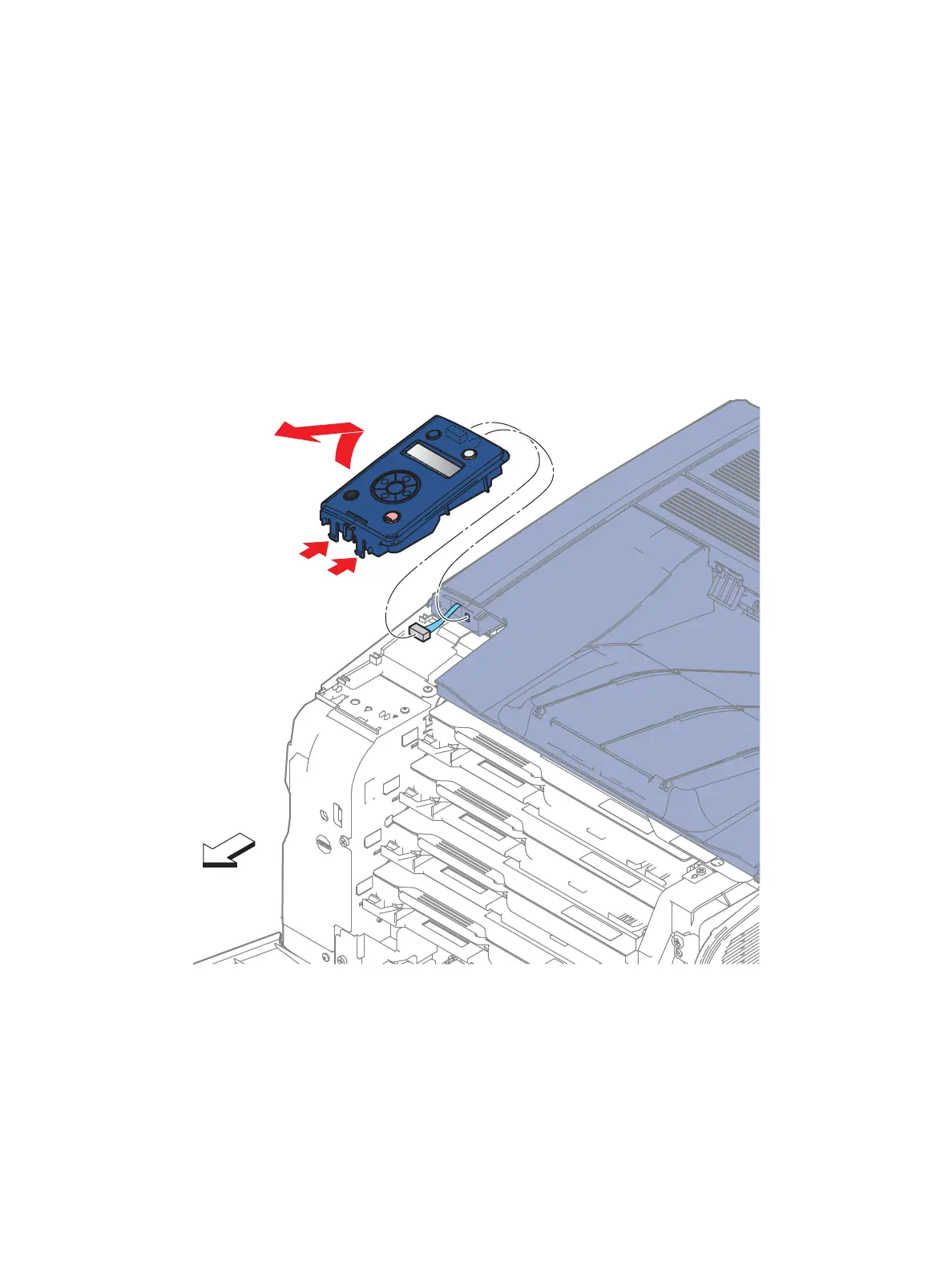

2. Raise the front end of the Control Panel Assembly while releasing the two latches holding it using
a flatblade screwdriver or similar tool, and remove the assembly by releasing the two hooks on the
rear end from the holes on the printer.
3. Unplug the connector from the Control Panel Assembly and remove it.
To Next Page
