Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-79

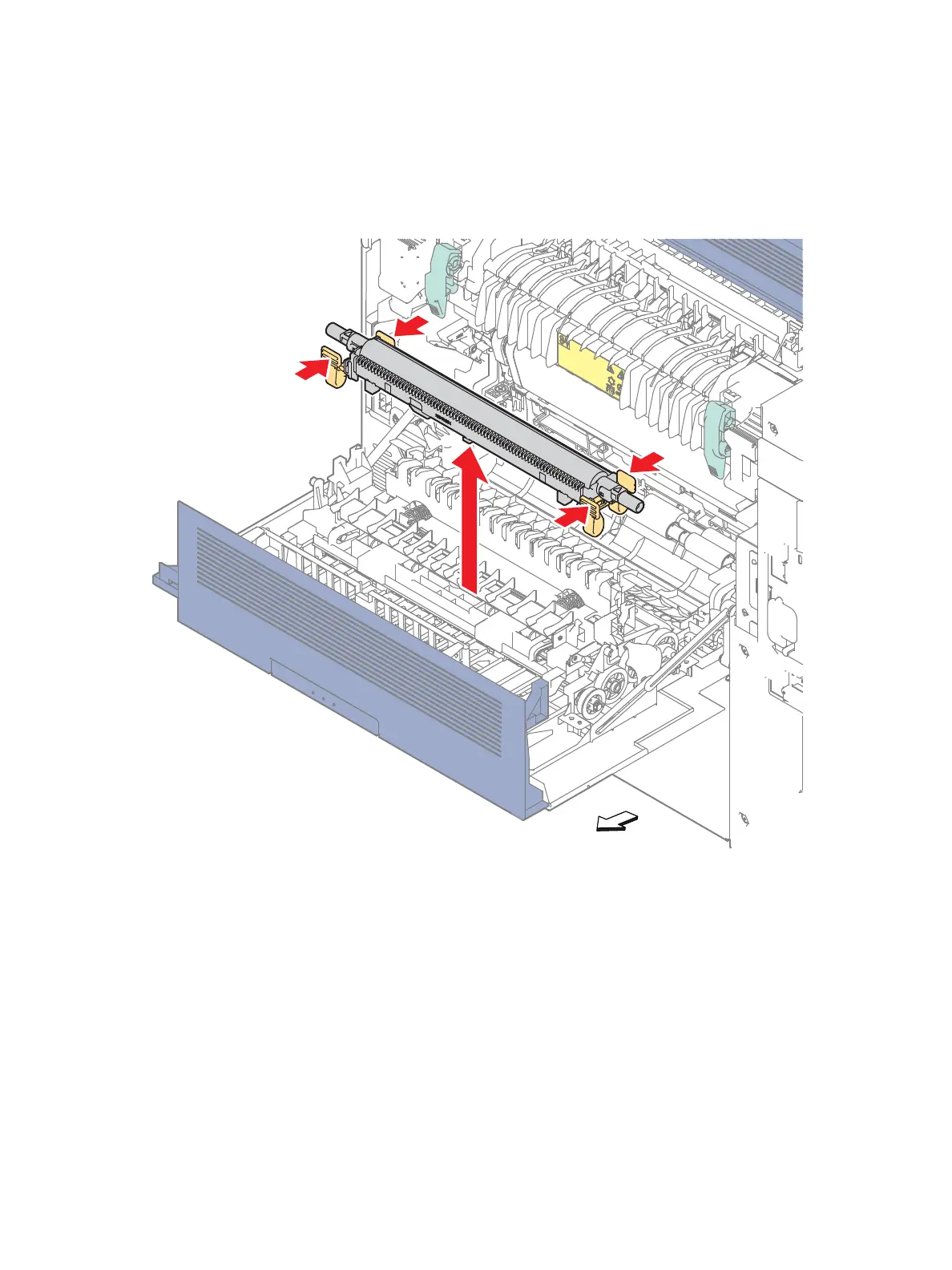

Transfer Roller
(PL14.1.2)
1. Open the Rear Door Assembly (PL19.1.95).
2. Remove the Transfer Roller upward while squeezing the tabs holding it.
s6600-133
Rear
