Xerox WorkCentre 6605 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-33

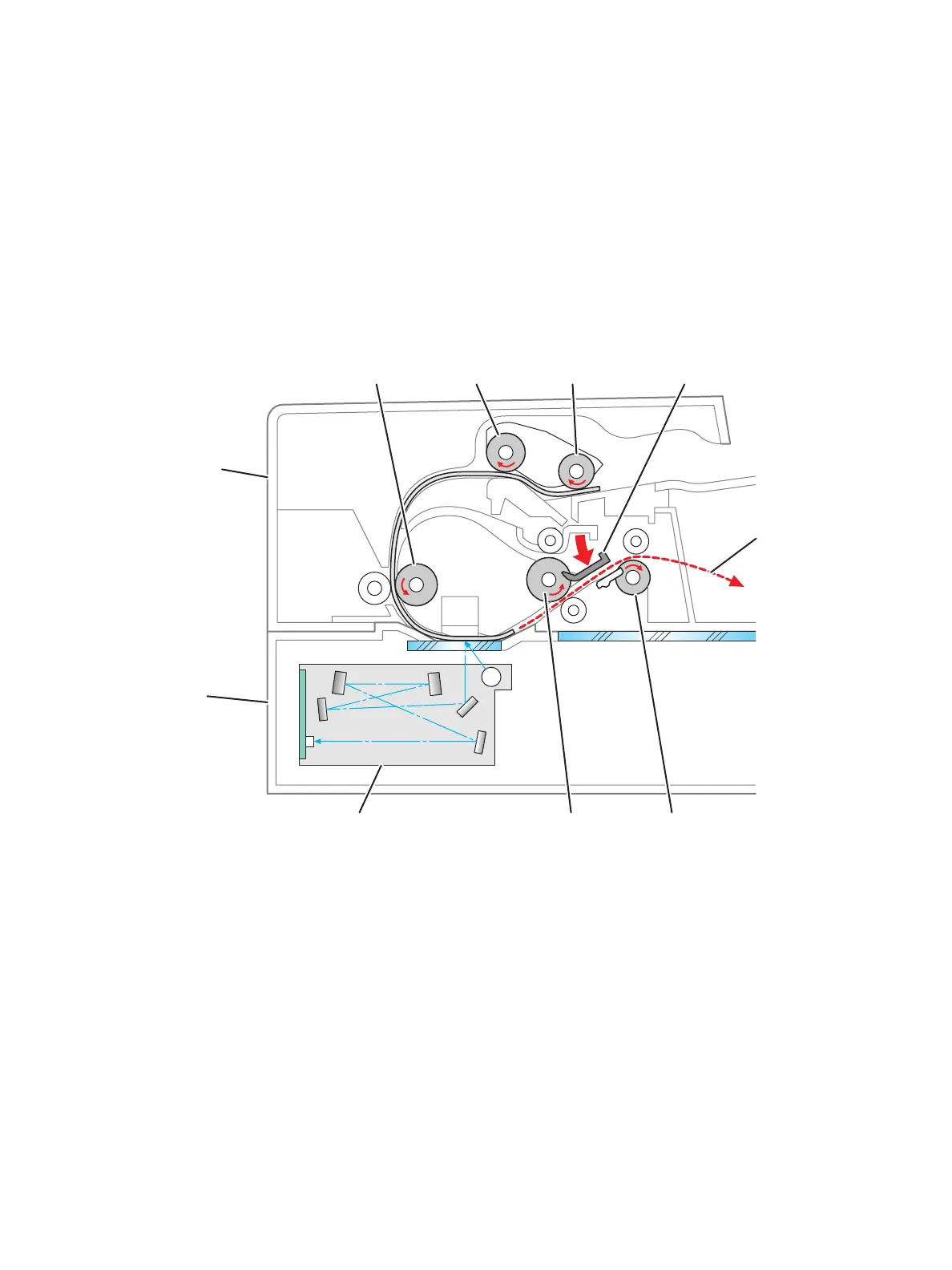

Paper Path of DADF (Simplex)
When the sheet feeding from the Document Feeder Tray of the DADF starts, the Nudger Roll and the
Feed Roll that rotate driven by the torque from the DADF Motor. The sheet is nipped between the Feed
Roll and the Retard Pad while being fed into the DADF.
Inside the DADF, the sheet is fed by the Takeaway Roll that rotates by the torque from the DADF Motor
to the Scanner Home (CVT: Constant Velocity Transport) Position in the Carriage Assembly, and is
scanned.
After being scanned, the sheet is ejected to the Document Output Tray of the DADF by the Transport
Roll and Exit Roll that rotates by the torque from the DADF Motor.
s6600-211
Pressure PlateNudger RollerFeed RollerTakeaway Roller
DADF Assy
IIT Assy
Exit RollerTransport RollerCarriage Assy
Document

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
