Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-54
550 Option Left-Side Cover
PL10.1.2
Note: When installing or removing this part, you do not need to separate the printer from the
Optional 550-Sheet Feeder.

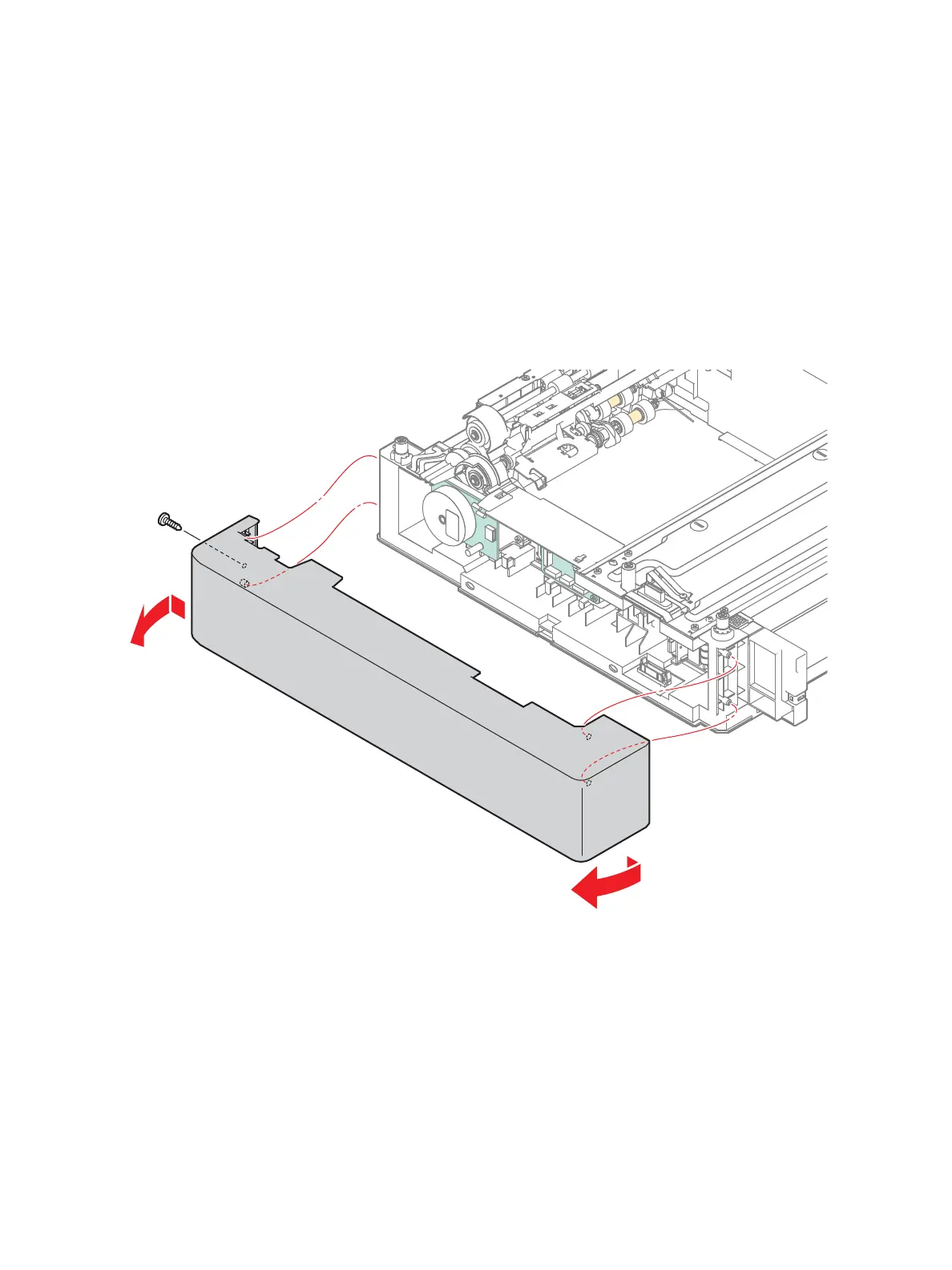

1. Remove the 550 Option Cassette Assembly from the Optional 550-Sheet Feeder.
2. Remove the screw (silver, tapping, 8mm) that attaches the 550 Option Left-Side Cover (PL10.1.2)
to the feeder.
3. Remove the 550 Option Left-Side Cover by releasing the two bosses on its rear and then the two
bosses on its front while flexing its rear end outward.
s6600-171
