Xerox WorkCentre 6605 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-47

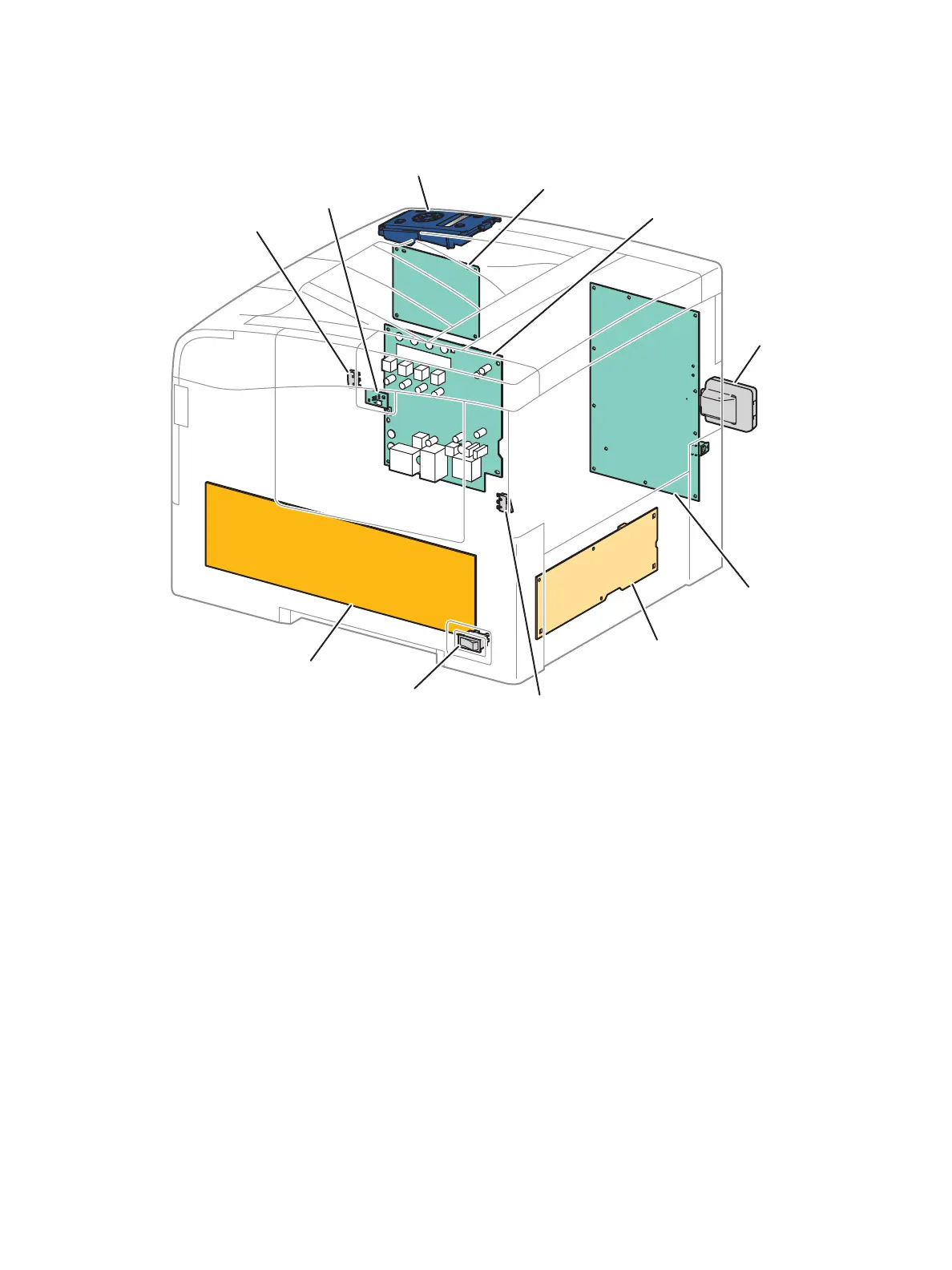

Electrical
The Control Panel Assembly (PL1.1.1) consists of the LCD, LED, and the switch. The assembly displays
the status of the machine with the LCD and LED, and controls the machine using the switch.
The Rear Interlock Switch (PL14.1.3) detect s the opening/closing of the Rear Cover.
Door Interlock Switch (PL19.1.21) detects the opening/closing of the Top Cover.
The Main Switch (PL18.1.31) controls AC power to the printer.
The MCU Board (PL18.1.13) communicates with the IP Board and controls each component in
printing.
The IP Board (PL18.1.22) is the printer controller. It controls printing by communicating with the MCU
Board, Laser Unit, and Control Panel (UI).
The LVPS (PL18.1.34) generates +24VDC, +5VDC, and +3.3VDC from the AC power source to supply
each component.
The Transfer HVPS (PL18.1.28) provides high voltage to the 1st BTRs, which are part of the Transfer Belt
Assembly.
s6600-255
Control Panel Assembly
Rear Interlock Switch
Door Interlock Switch
Main Switch
MCU Board
IP Board
LVPS
Transfer HVPS
Developer HVPS
EEPROM Board
Wireless

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
