Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-52
Feed Roller Assembly
PL9.1.4, PL10.3.4
1. Remove the 550 Cassette Assembly from the printer.
2. Remove the Tray Retard Holder Assembly. (page 4-51)

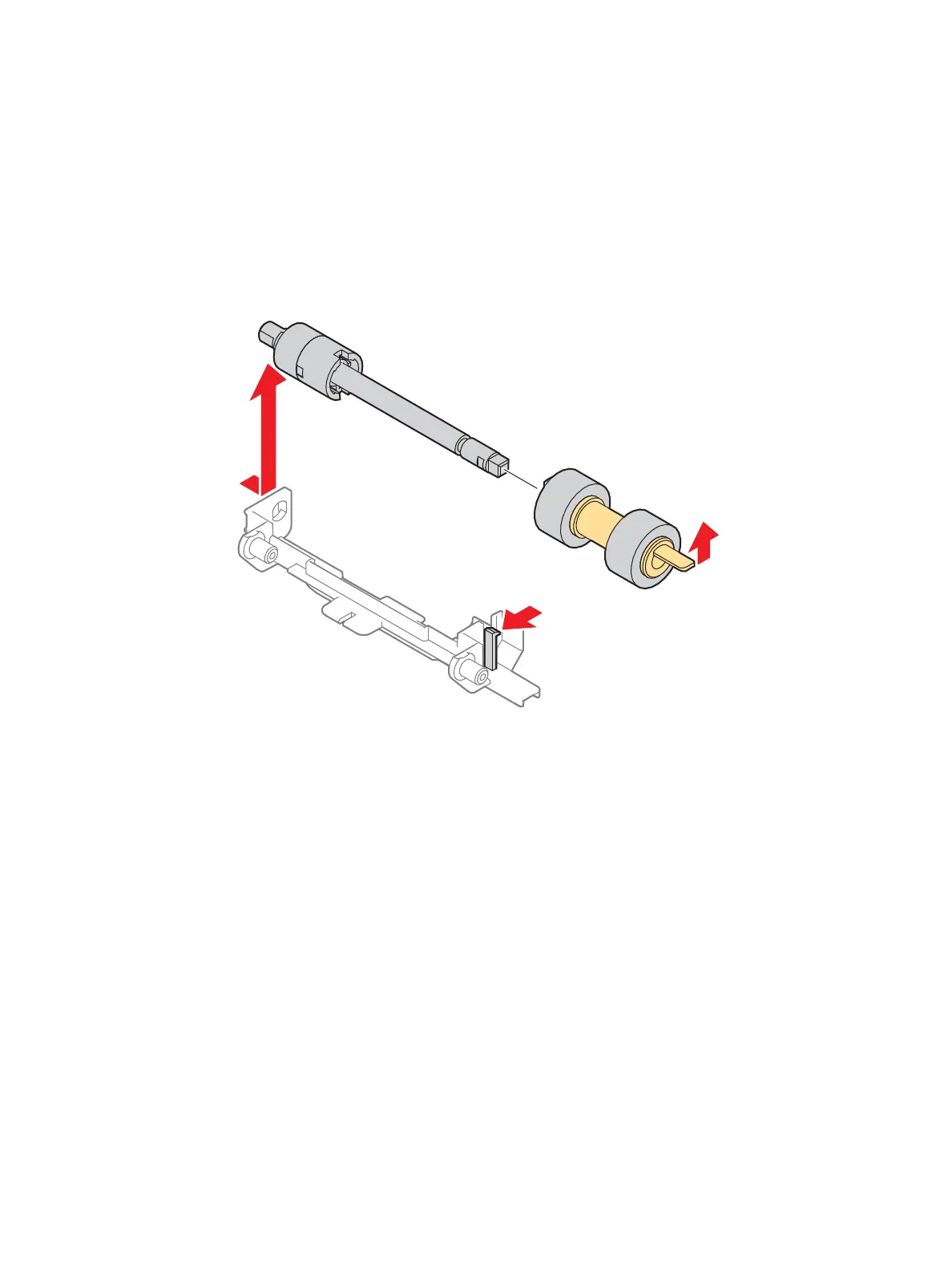

3. Release the hook holding the Tray Retard Shaft (PL9.1.6) (PL10.3.6) and remove the shaft
together with the Feed Roller Assembly (PL9.1.4) (PL10.3.4) by pulling it out sideways.
4. Release the hook that holds the Feed Roller Assembly and slide the roller off the shaft.
To Next Page
