Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-6

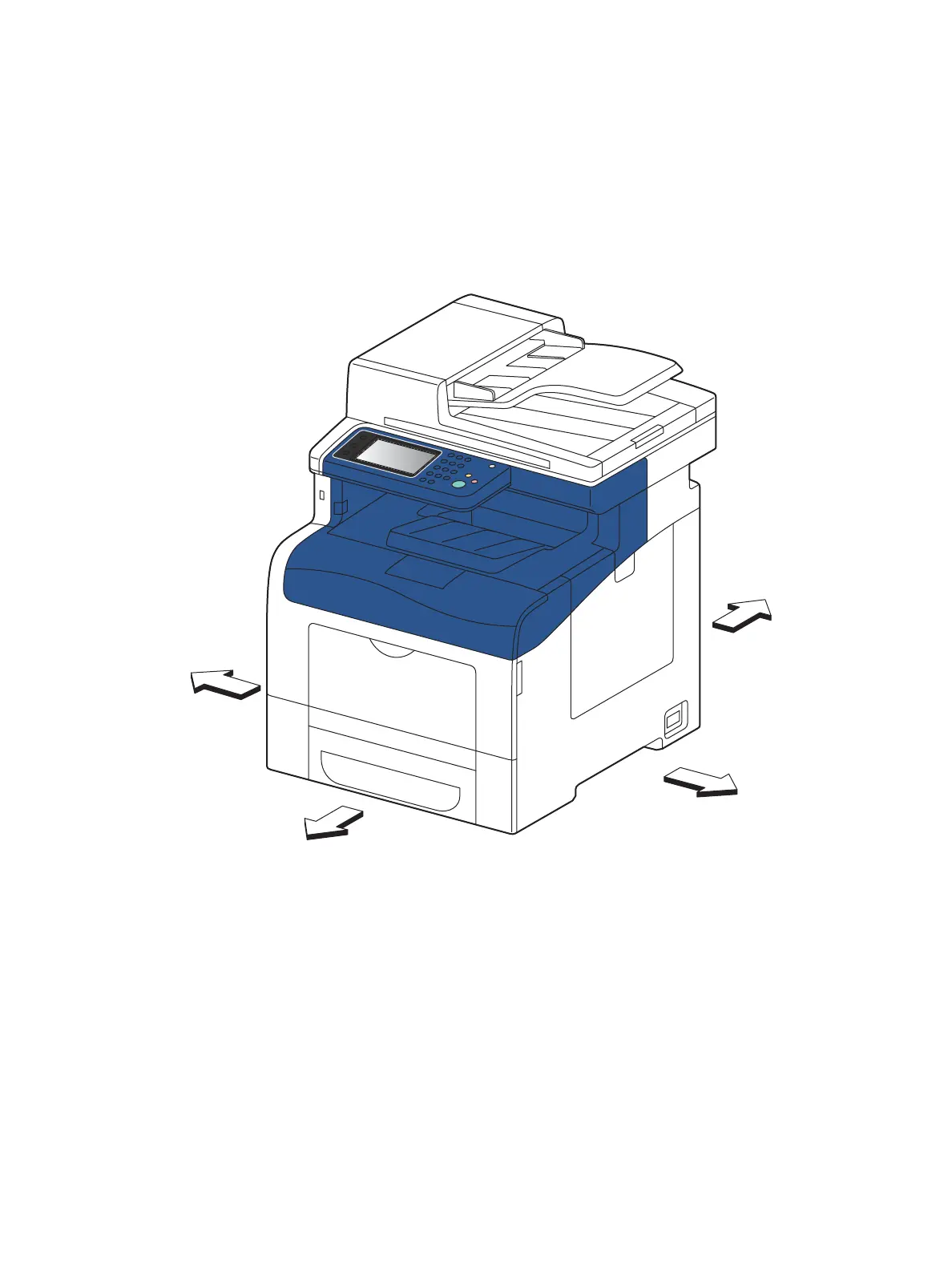

Standard Orientation of the MFP
Directional descriptions used in the procedures are defined as follows:
Front: Direction toward you when facing the front of the printer.
Rear: Direction opposite to the front when facing the front of the printer.
Left: Left-hand direction when facing the front of the printer.
Right: Right-hand direction when facing the front of the printer.
s6600-117
Left
Right
Front
Rear
