Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-72

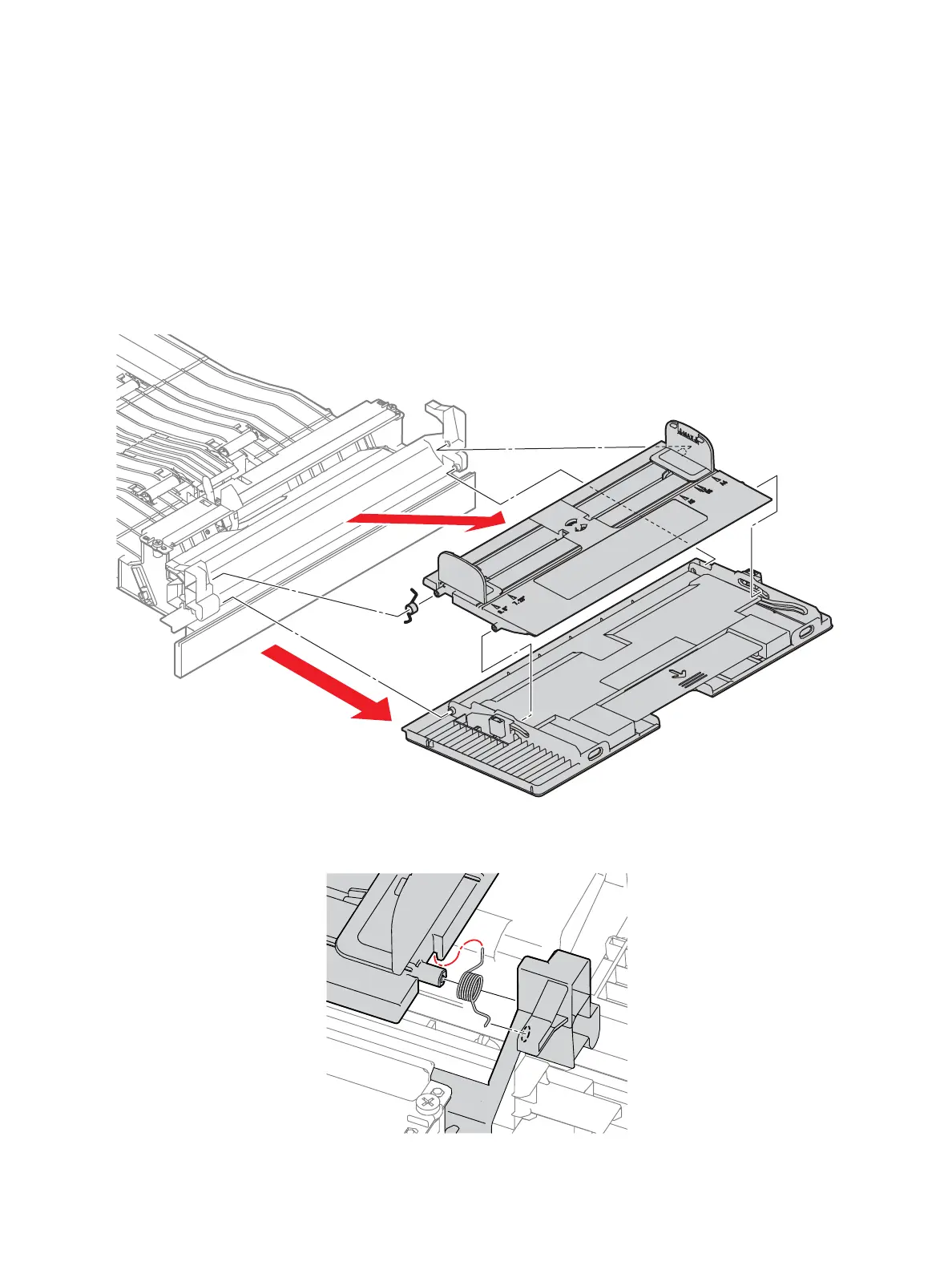

Bypass Tray Cover Assembly
PL13.3.2
1. Remove the Bypass Tray Assembly. (page 4-71)
2. Open the Bypass Tray Cover Assembly (PL13.3.2).
3. Remove the paper guide from the cover by flexing the paper guide to release the bosses from the
holes in both the cover and the tray assembly, and by releasing the Damper Spring (PL13.3.3).
4. Remove the Bypass Tray Cover Assembly (PL13.3.2) by flexing it to release the bosses from the
holes.
Replacement Note: Check that the Damper Spring is correctly in place.
s6600-176
s6600-181
