Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-147

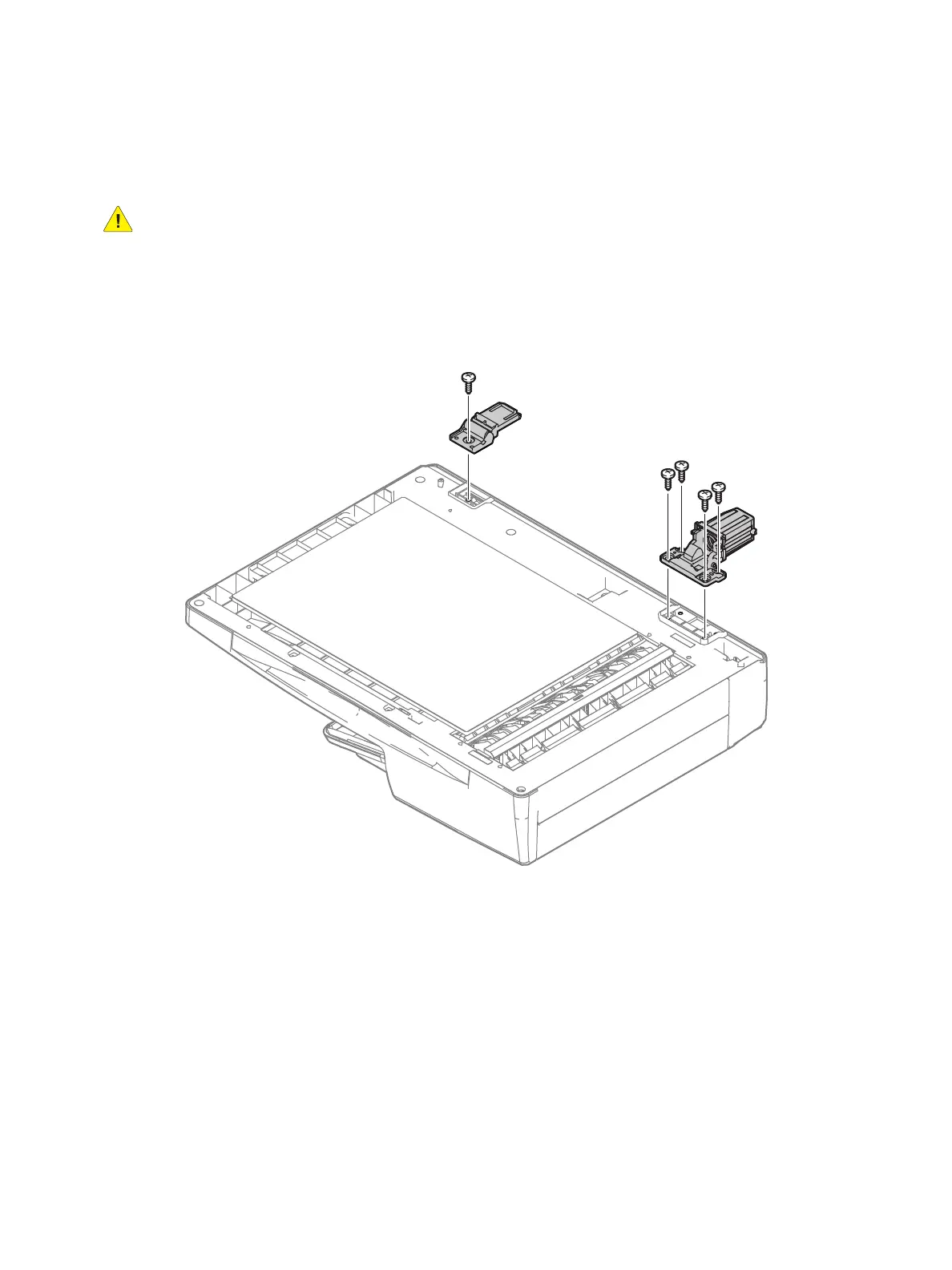

L Hinge/ R Hinge
PL51.1.7 / PL51.1.8
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the DADF Assembly / IIT Assembly. (page 4-143)
2. Remove the four screws (silver, tapping, 6mm) that attach the L Hinge (PL51.1.7) to the printer
and remove the hinge.
3. Remove the screw (silver, tapping, 6mm) that attaches the R Hinge (PL51.1.8) to the printer and
remove the hinge.
s6600-101
