Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-23
NOHAD
Toner Full Sensor
PL4.1.17

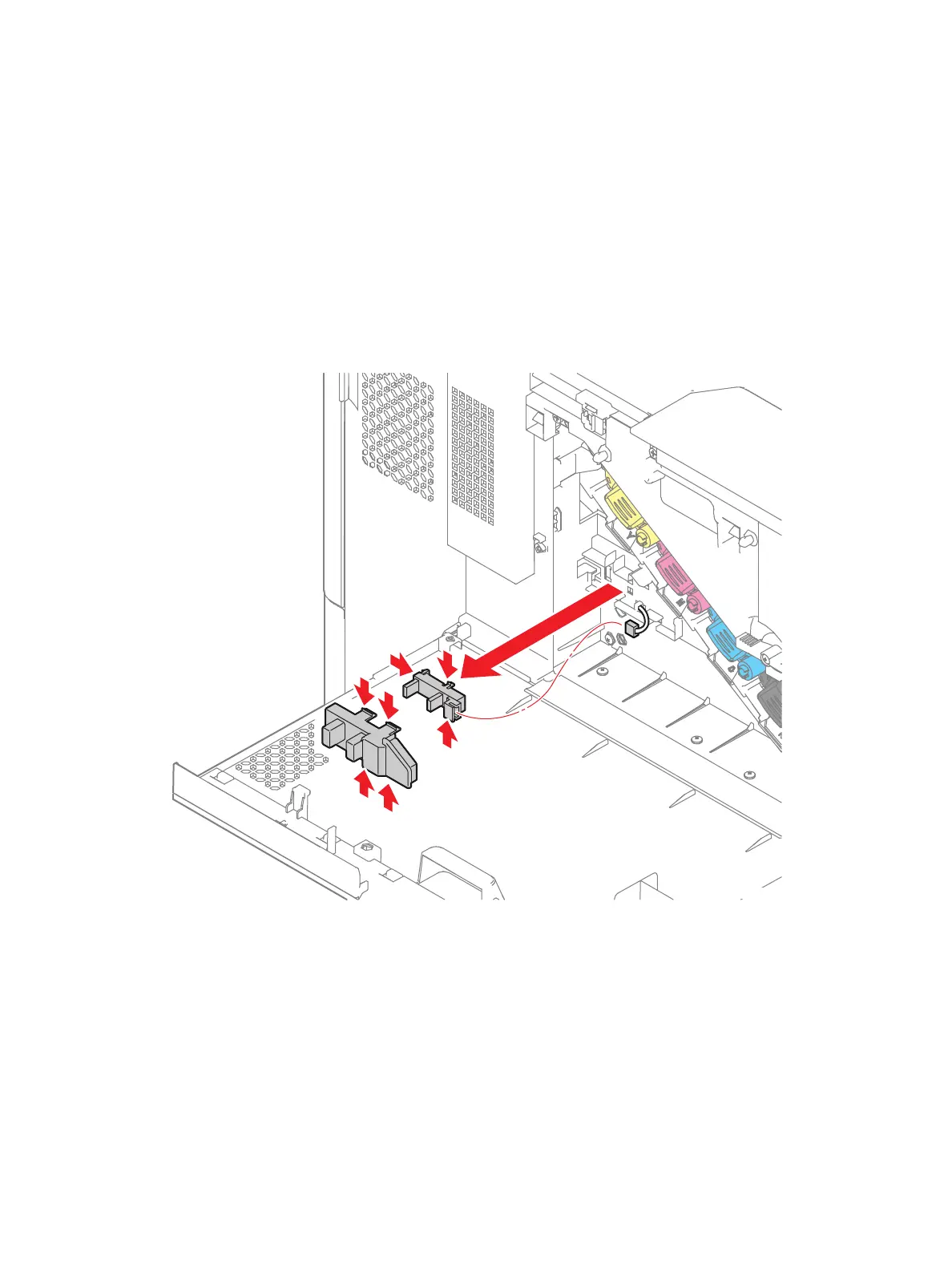

1. Remove the Waste Cartridge. (page 4-50)
2. Release the four hooks holding the Waste Sensor Cover (PL4.1.11) and remove the cover.
3. Disengage connector P/J203 of the Toner Full Sensor (PL4.1.17).
4. Release the hook holding the Toner Full Sensor and remove the sensor.
s6600-109
