Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-22
3. Release the harness from the LV AC Harness Guide (PL18.1.32).
4. Remove the screw (silver, 6mm) that attaches the LV AC Harness Guide to the printer and remove
the guide.
5. Release the hook of Waste Gear 3 (PL3.1.7) and remove the gear.
6. Release the hook of Waste Gear 2 (PL3.1.3) and remove the gear.
7. Unlock Waste Bearing 1 (PL3.1.4) and rotate the bearing to remove it.
8. Remove the Waste Idler Shaft (PL3.1.5) by pulling it out of the hole on the frame.
9. Remove Waste Bearing 2 (PL3.1.6).

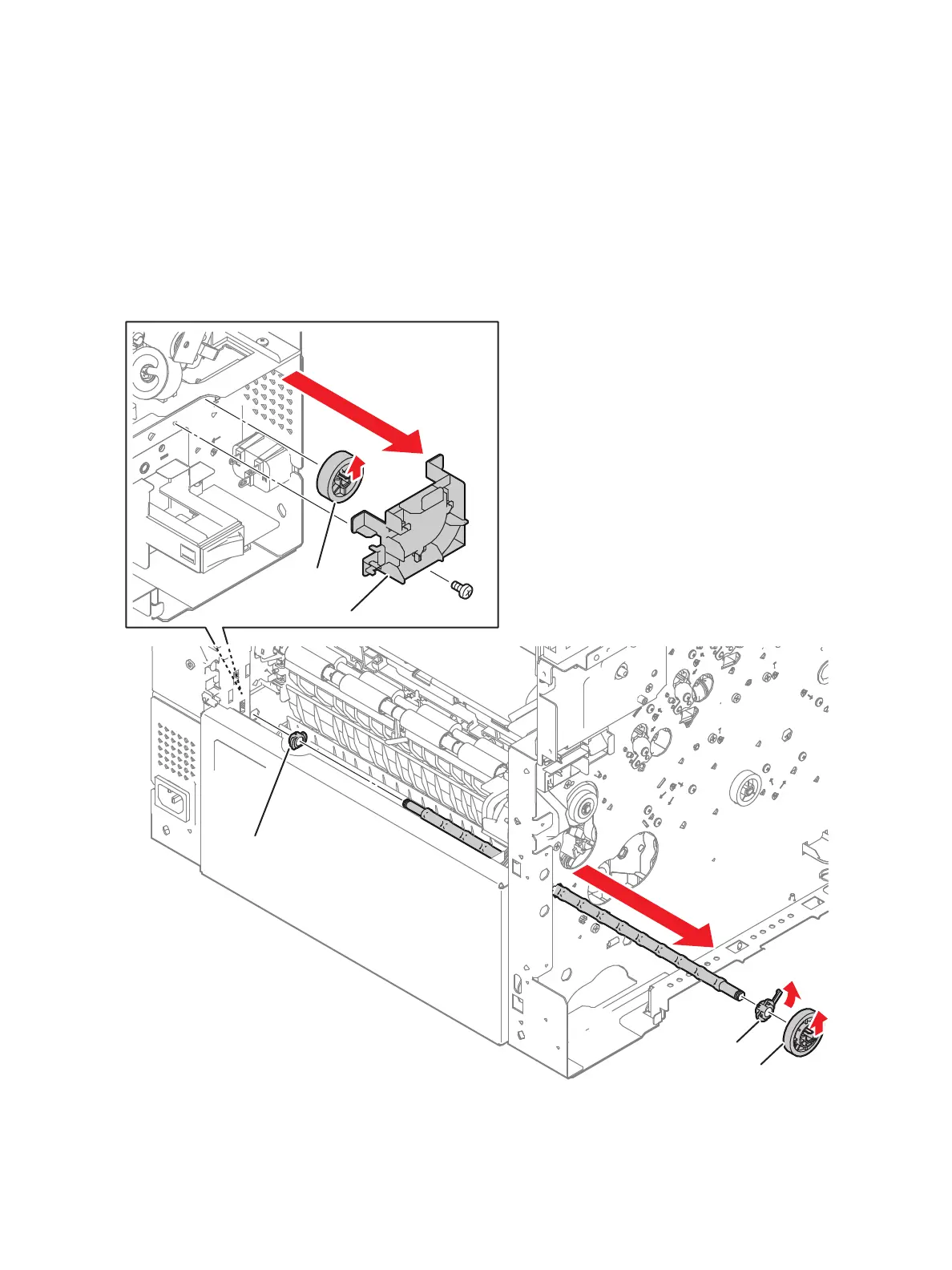

s6600-108
Waste Gear 3
Waste Gear 2
Waste Bearing 2
Waste Bearing 1
LV AC Harness Guide
