Xerox WorkCentre 6605 Service Manual

General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-34

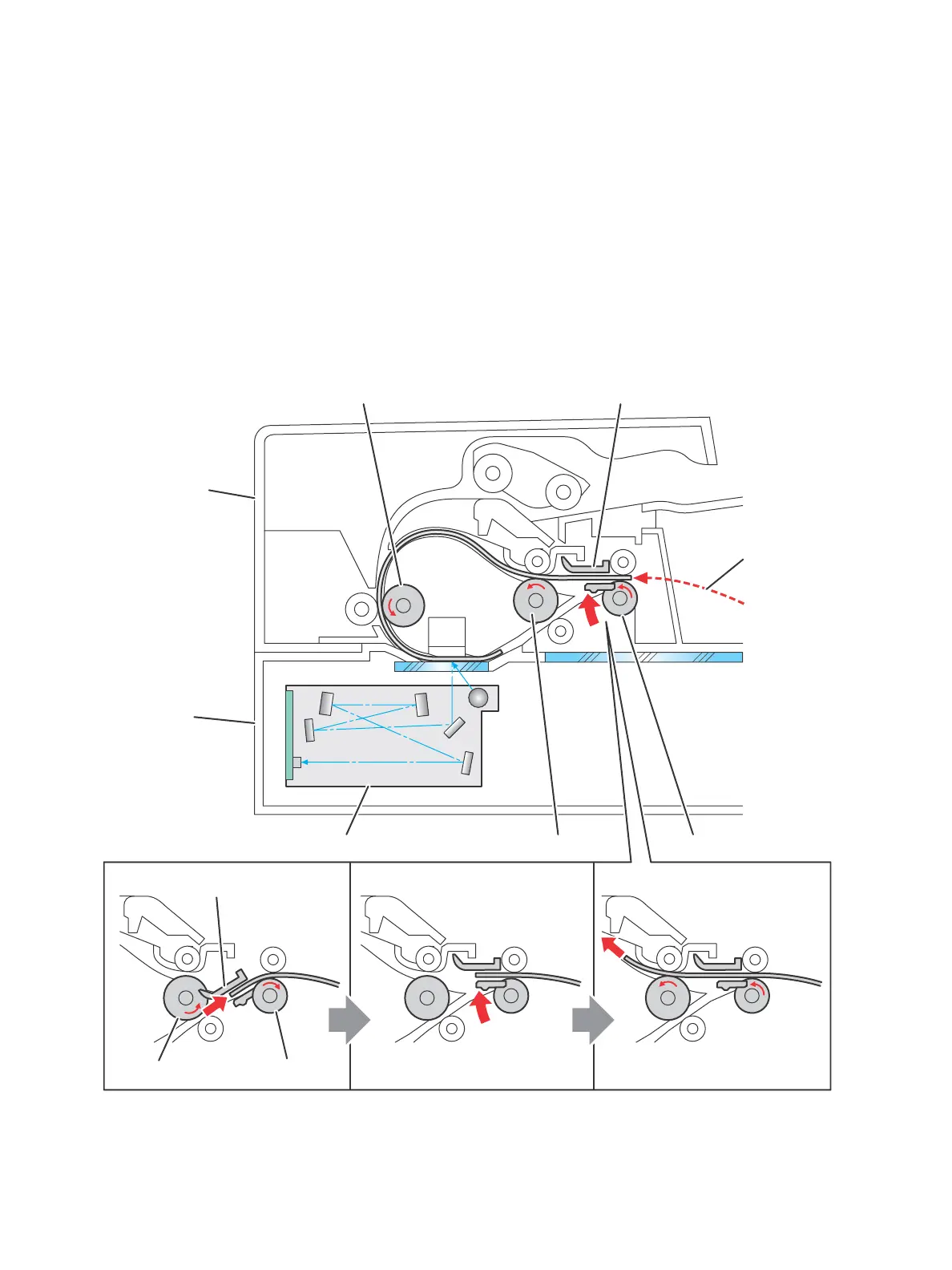

Paper Path of DADF (Duplex)
After scanning a document is completed and the rear edge of the document is passed through the
Transport Roll, switch the position of the Pressure Plate to above. Then, the Exit Roll is reversed by the
reverse drive of the DADF Motor, and the document is nipped into the DADF. The document is reversed
at this time. When the position of the Pressure Plate is switched, the gear to drive the Transfer Roll is
switched, so the rotation is in a positive manner although the DADF Motor rotates in a negative
manner. When the document is fed near side of the Take away Roll, switch the position of the Pressure
Plate to below to make the DADF Motor return to the positive rotation drive, and the document is fed
to the Scanner Home Position (CVT Position) by the torque from the Transport Roll. The document
scanned at the CVT Position is fed to the Document Output Tray of the DADF by the Transport Roll and
the Exit Roll.
s6600-237
Pressure Plate
Exit RollerTransport Roller
Pressure PlateTake Away Roller
DADF Assembly
IIT Assembly
Exit RollerTransport RollerCarriage Assembly
Document

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
