• The installation procedures are basically the reverse order of removal. There are notes at the
"Replacement" section for items which require special caution.

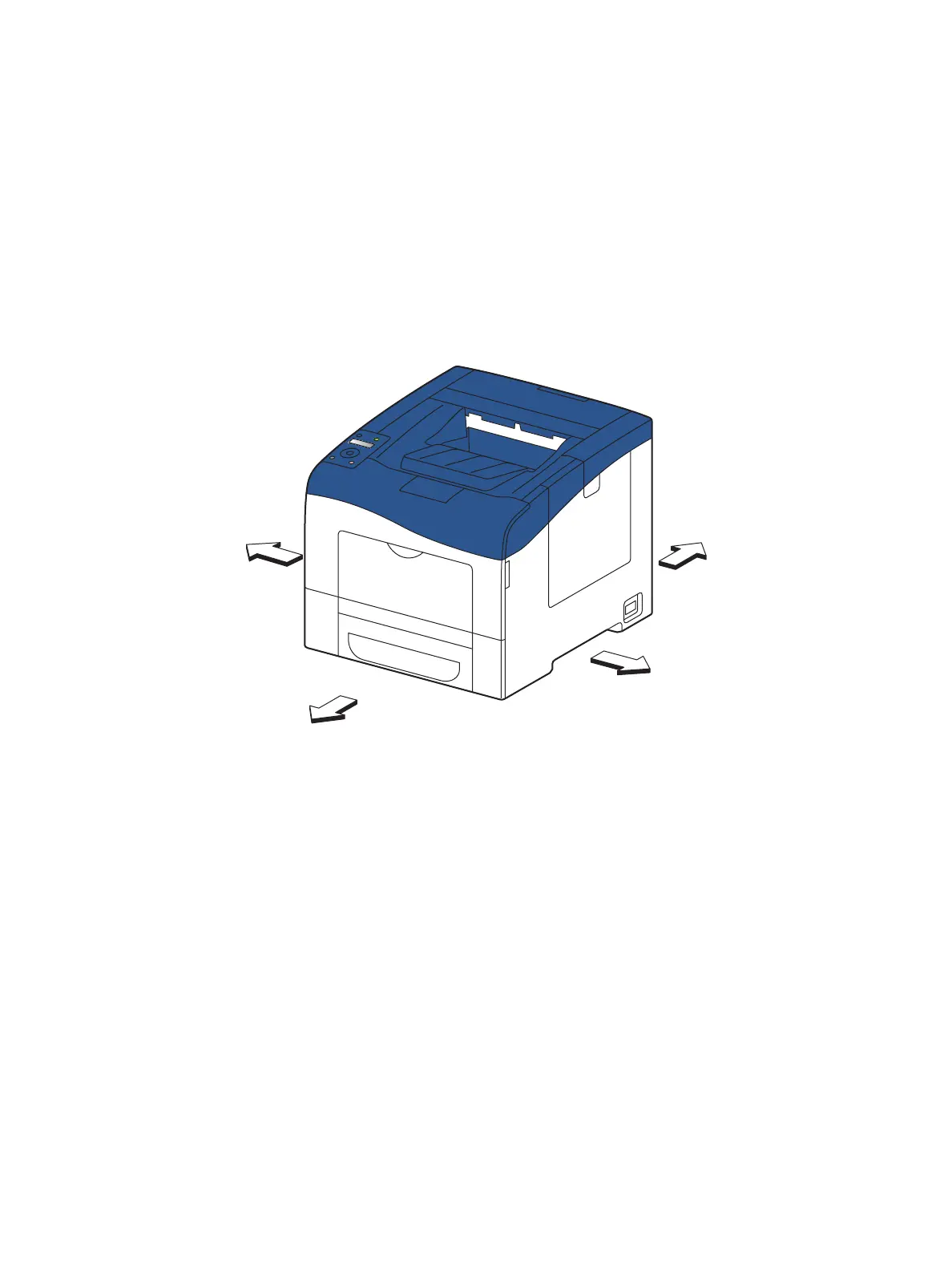

Standard Orientation of the SFP
Directional descriptions used in the procedures are defined as follows:
Front: Direction toward you when facing the front of the printer.
Rear: Direction opposite to the front when facing the front of the printer.
Left: Left-hand direction when facing the front of the printer.
Right: Right-hand direction when facing the front of the printer.
s6600-119
Left
Right
Front
Rear
