Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-76
Bypass Tray Pinch Roller
(PL13.3.9)
1. Remove the Bypass Tray Assembly. (page 4-71)
2. Turn over the Bypass Tray Assembly.
3. Remove the pinch spring from the roller being removed.
4. Remove the Bypass Tray Pinch Roller (PL13.3.9).
Replacement Note: The TA1 and TA2 Pinch Springs are not the same. Carefully note the difference
in the springs when removing, and use caution not to confuse the springs when reinstalling.

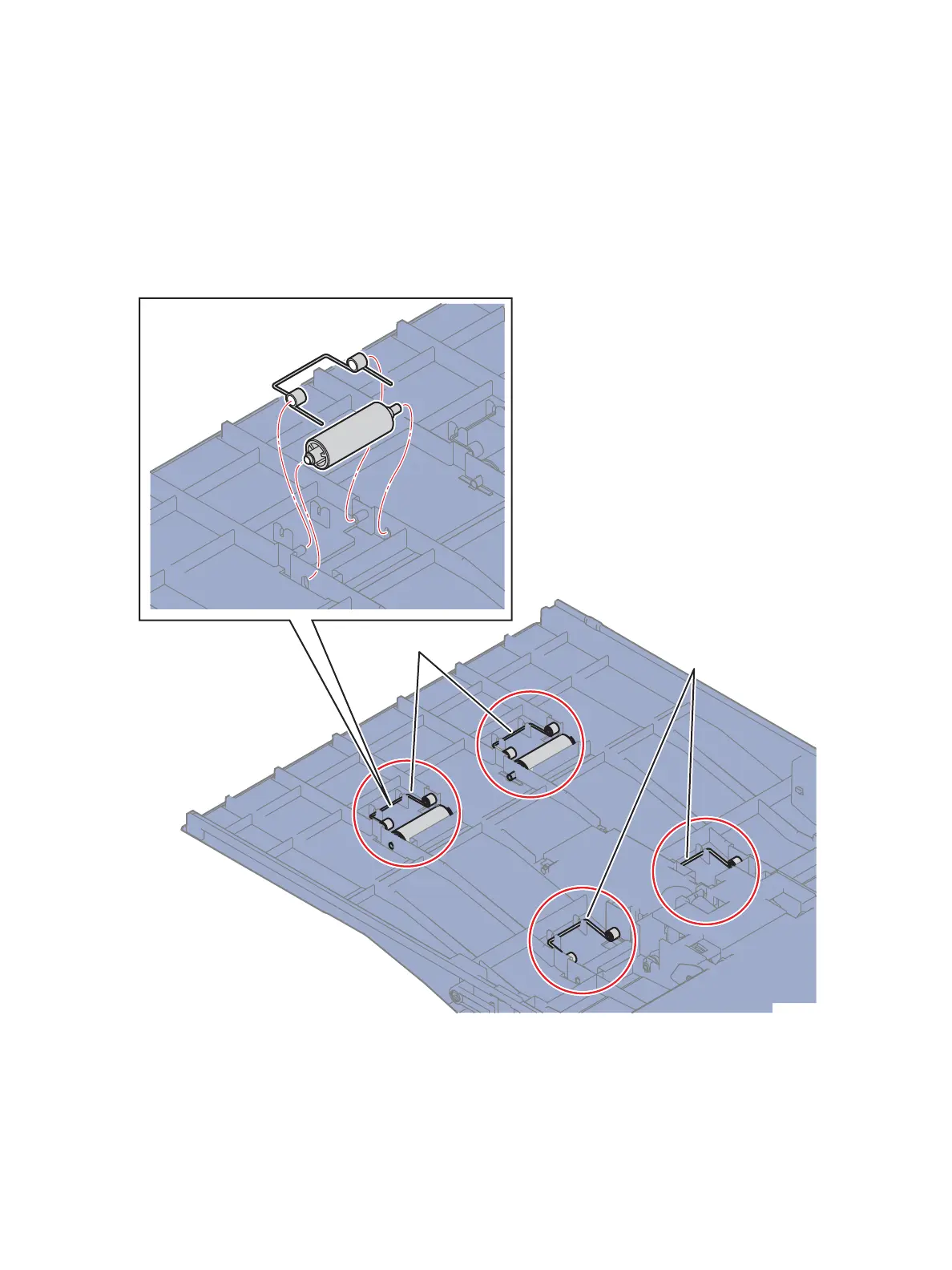

s6600-180
TA2 Pinch Springs
TA1 Pinch Springs
