Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-136
MFP Left Cover Assembly
PL19.1.98
1. Remove the Front Door Assembly. (page 4-128)

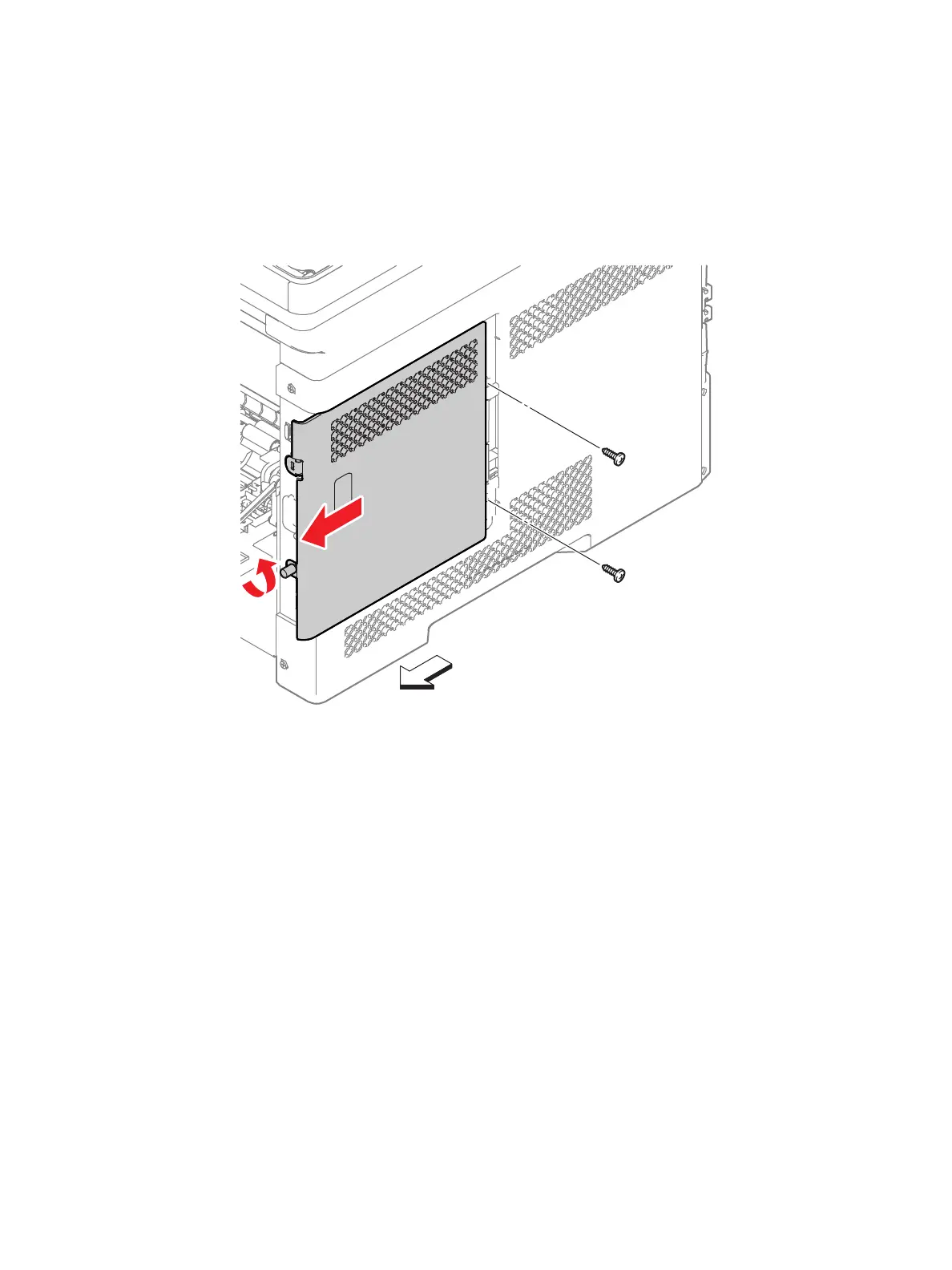

2. Lossen the knurled screw that attaches the IP Board Cover (PL19.1.44), slide the cover rearward,
and remove the two screws (silver, tapping, 8mm).
To Next Page
