3. Swing up the Control Panel Assembly.

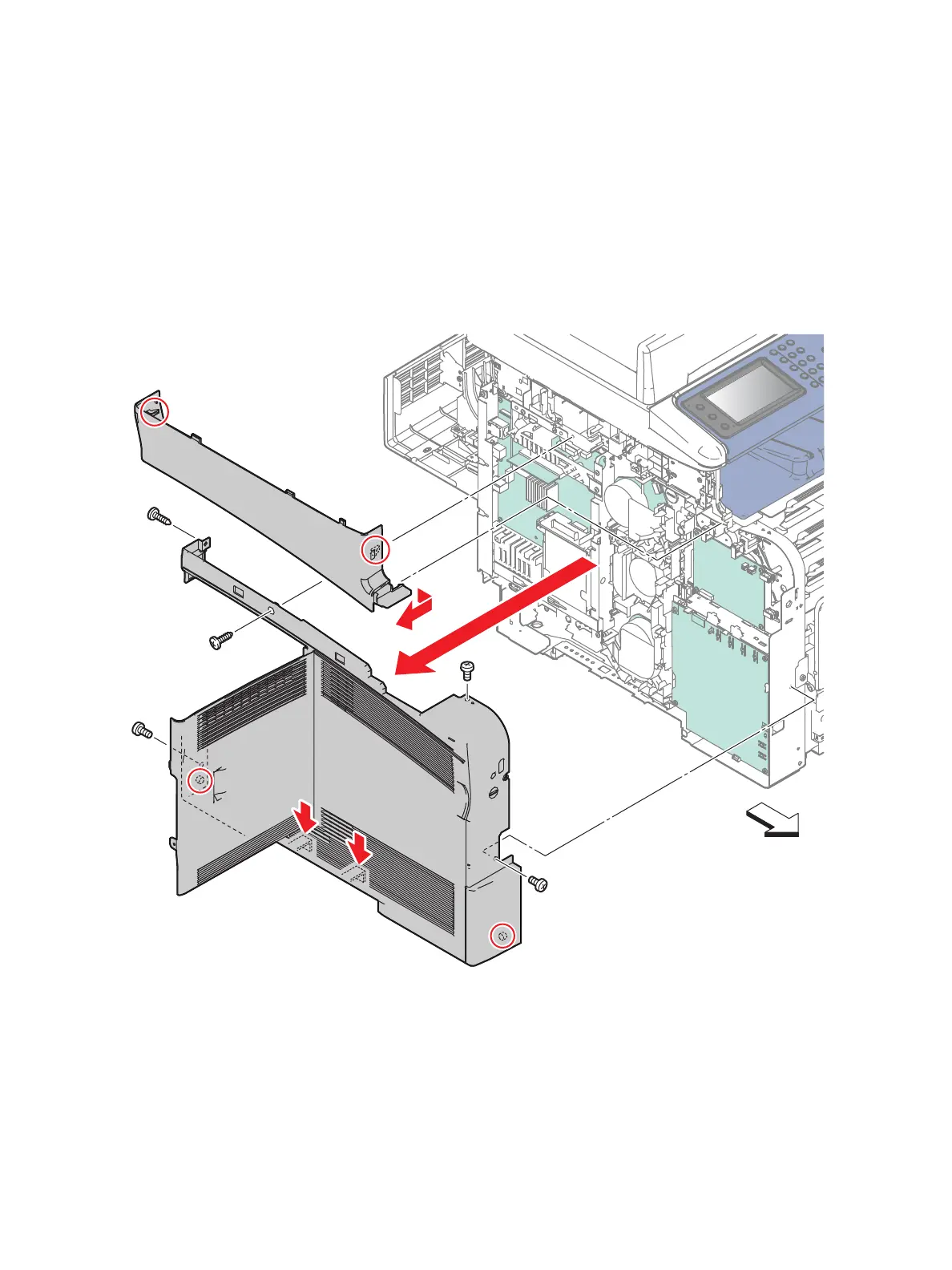

4. Release the front and rear hooks holding the Outer Left Pole Cover (PL19.1.64) using a flatblade
screwdriver or similar tool, and remove the cover.
5. Remove the two screws (silver, 6mm) that attach the rear of the Left Cover Assembly.
6. Remove the screw (silver, 6mm) that attaches the Left Cover Assembly at the top near the front.
7. Remove the screw(silver, 6mm) that attaches the front of the Left Cover Assembly.
8. Release the boss on the bottom front of the Left Cover Assembly, release the two hooks below the
recessed grip using a flatblade screwdriver or the like while flexing the front end slightly outward,
and then release the boss on the rear end.
s6600-093
Front
