Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-64

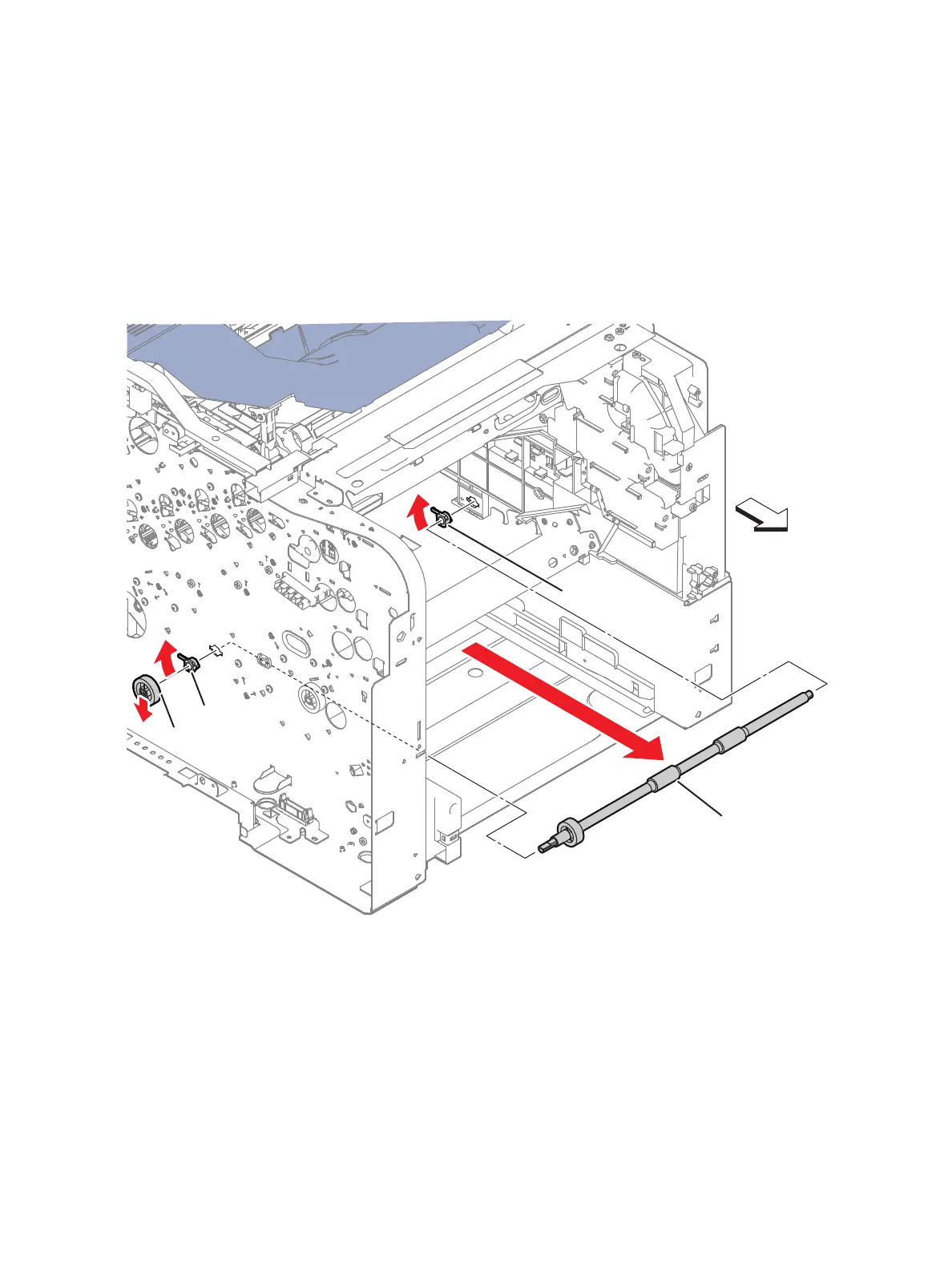

TA2 Roller Assembly
PL13.1.3
1. Remove the Laser Unit Assembly. (page 4-10)
2. Release the hook holding the Turn Gear (PL13.1.7) and remove the gear.
3. Unlock the TA Bearing (PL13.1.6) and remove it by rotating it.
4. Unlock the Duplex Bearing (PL13.1.1), rotate it, and then slide it onto the shaft.
5. Slide the TA2 Roller Assembly (PL13.1.3) to the left and remove it from the end of the right shaft.
s6600-127
Front
TA2 Roller
Duplex Bearing
TA Bearing
Turn Gear
