Bypass Tray

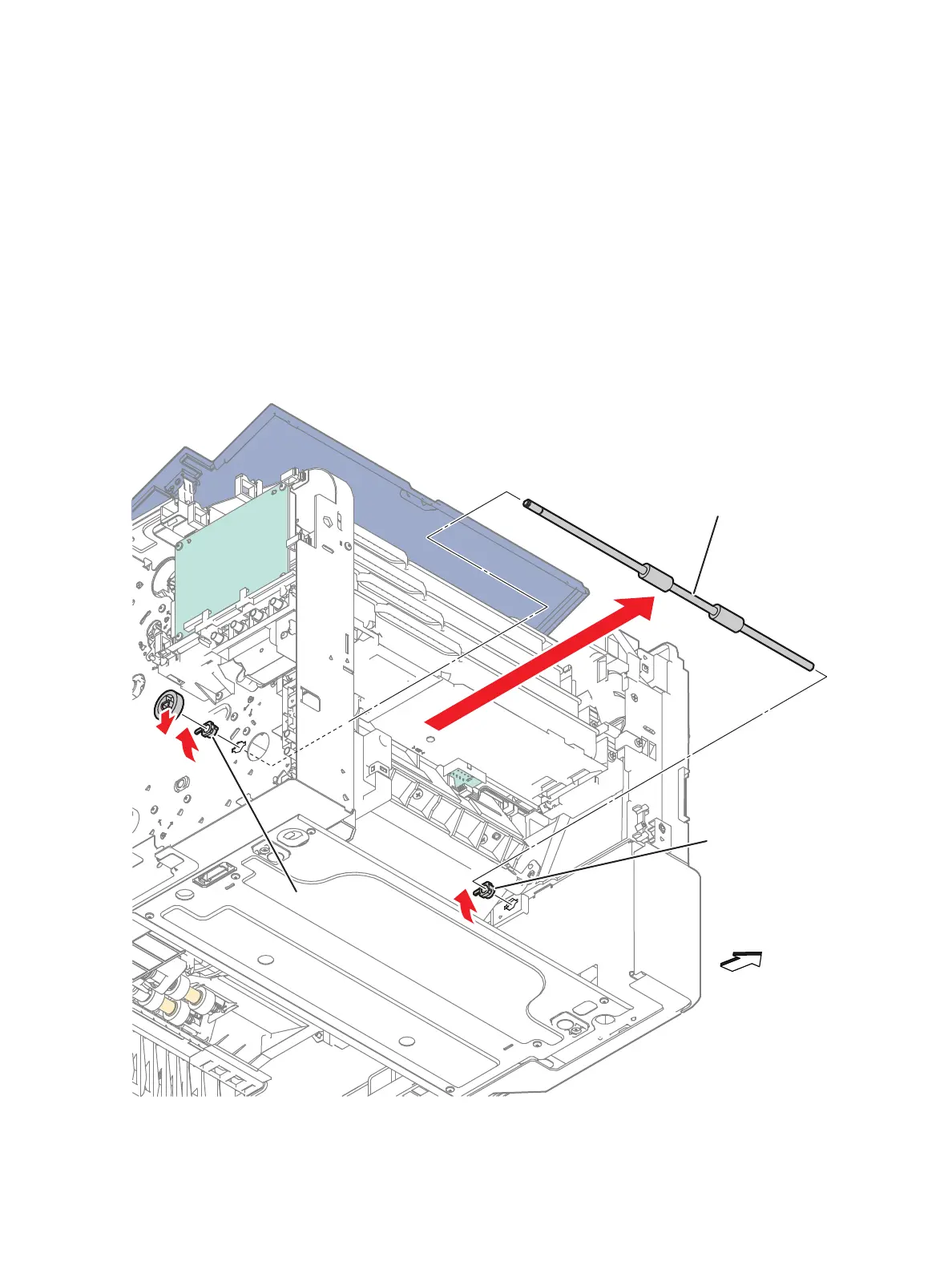

TA1 Roller Assembly
PL13.1.2
1. Remove the Bypass Tray Frame Assembly. (page 4-65)
2. Release the hook holding the Turn Gear (PL13.1.7) and remove the gear.
3. Unlock the TA Bearing (PL13.1.6) and remove it by rotating it.
4. Unlock the Duplex Bearing (PL13.1.1), rotate it, and then slide it onto the shaft.
5. Slide the TA1 Roller Assembly (PL13.1.2) to the left and remove it from the end of the right shaft.
s6600-126
Front
TA1 Roller
TA Bearing
Duplex Bearing
