Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-125
Exit Cover
PL19.1.11
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Left Cover Assembly. (SFP page 4-134; MFP page 4-136)
2. SFP Only: Remove the Left Sub-top Cover. (page 4-126)
3. MFP Only: Remove the Scanner Assembly. (page 4-138)

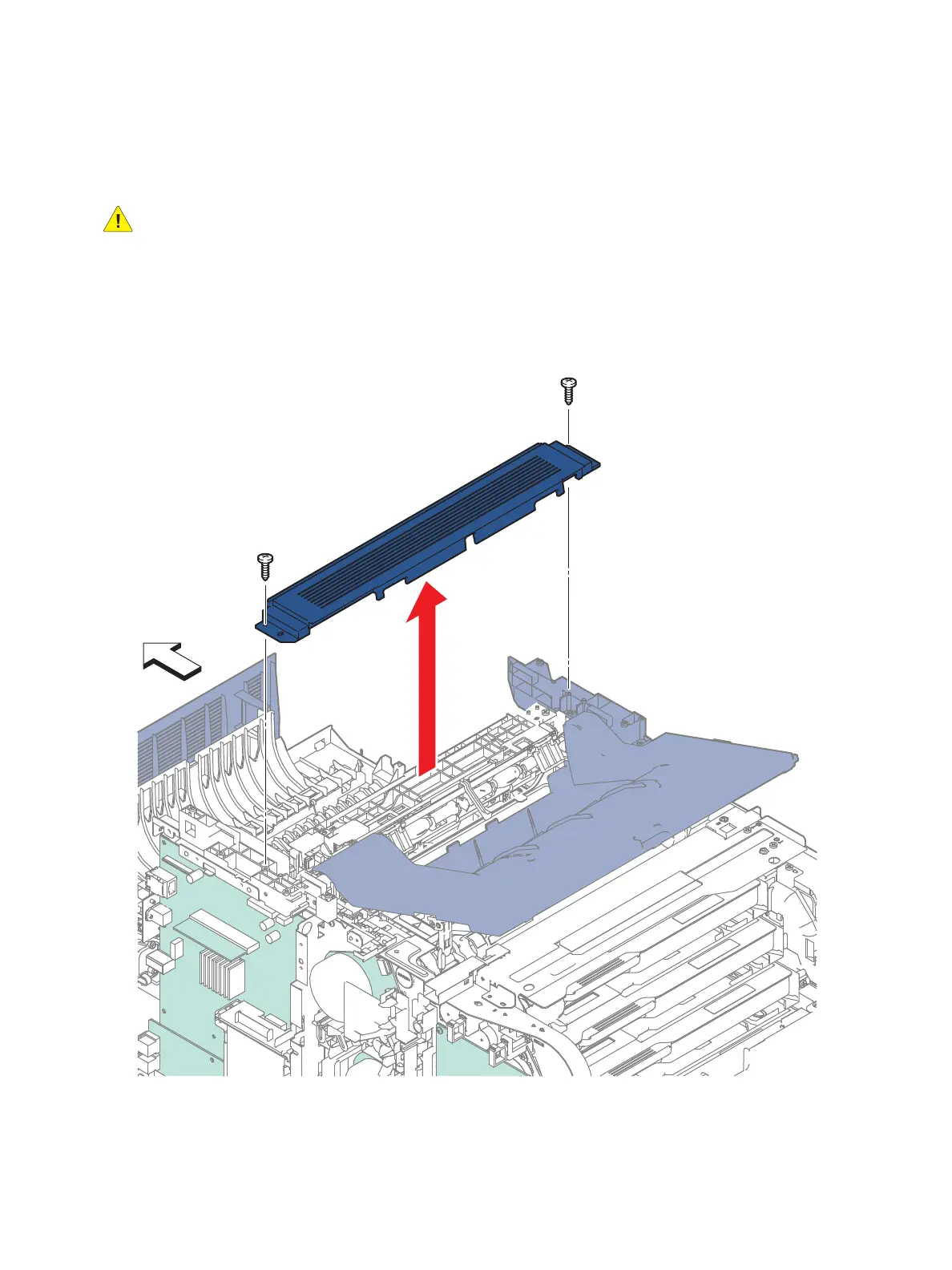

4. Remove the two screws (silver, tapping, 8mm) that attach the Exit Cover to the printer and remove
the cover.
