Xerox WorkCentre 6605

Parts Lists
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
5-38

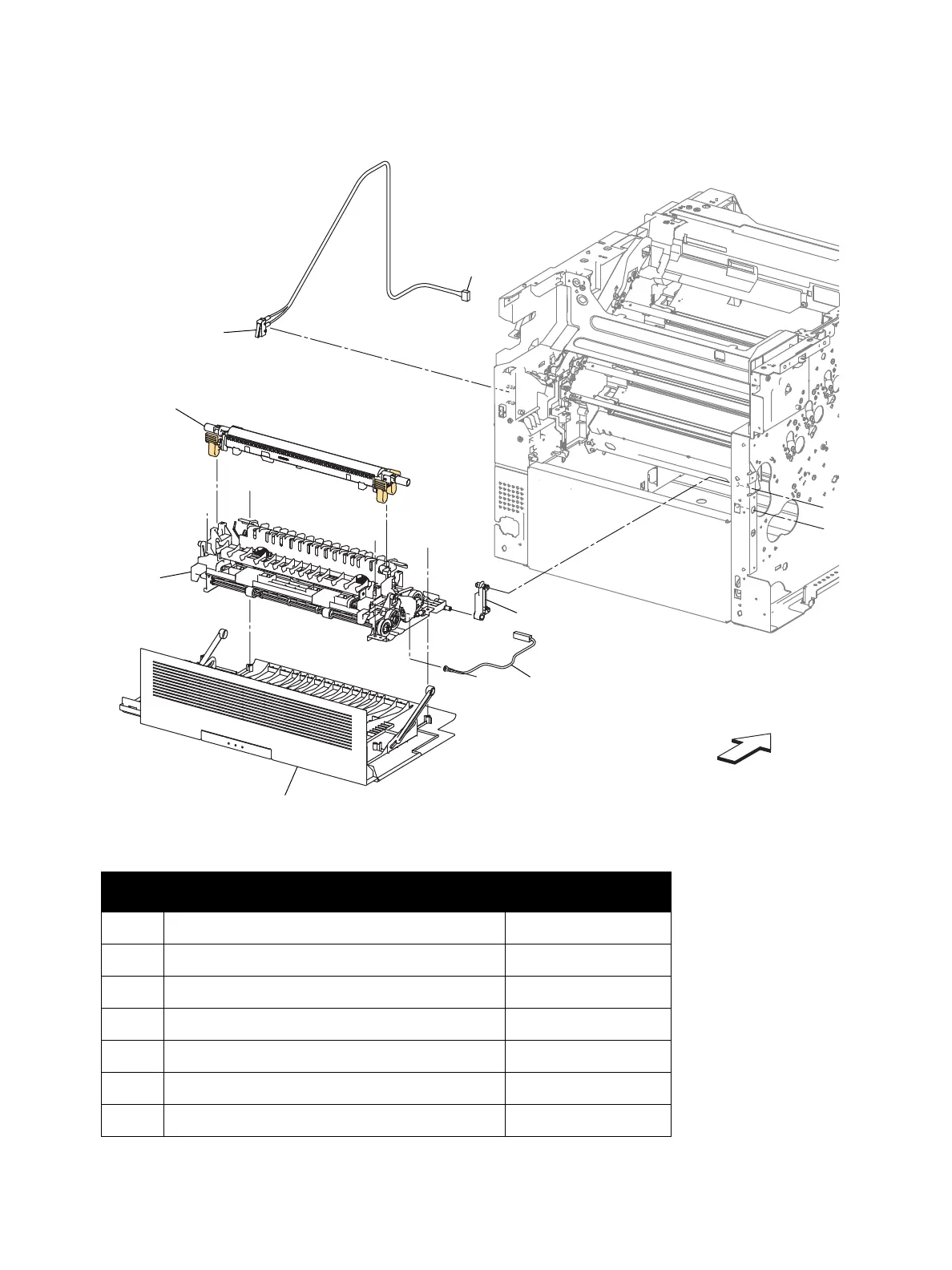

Parts List 14.1 Duplex
Parts List 14.1 Duplex
Item Name Part Number
1 Kit Duplex Assembly 054K46661
2 Roll Assy-2ND CRU (Transfer Roller) —
3 Harness Assy Rear SW(Rear Interlock Switch) —
4 Bracket Hinge Rear 868E68951
5 Harness Assembly —
99 Kit Roll Assy-2ND CRU (with2) (Transfer Roller) 604K77540
s6600-048
Front
S
S
S
S
S
S
S
2
3
1
4
5
PL19.1.13
(J41)
