Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-41
CTD Spring / CTD Sensor Assembly
PL6.1.13/PL6.1.14
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.

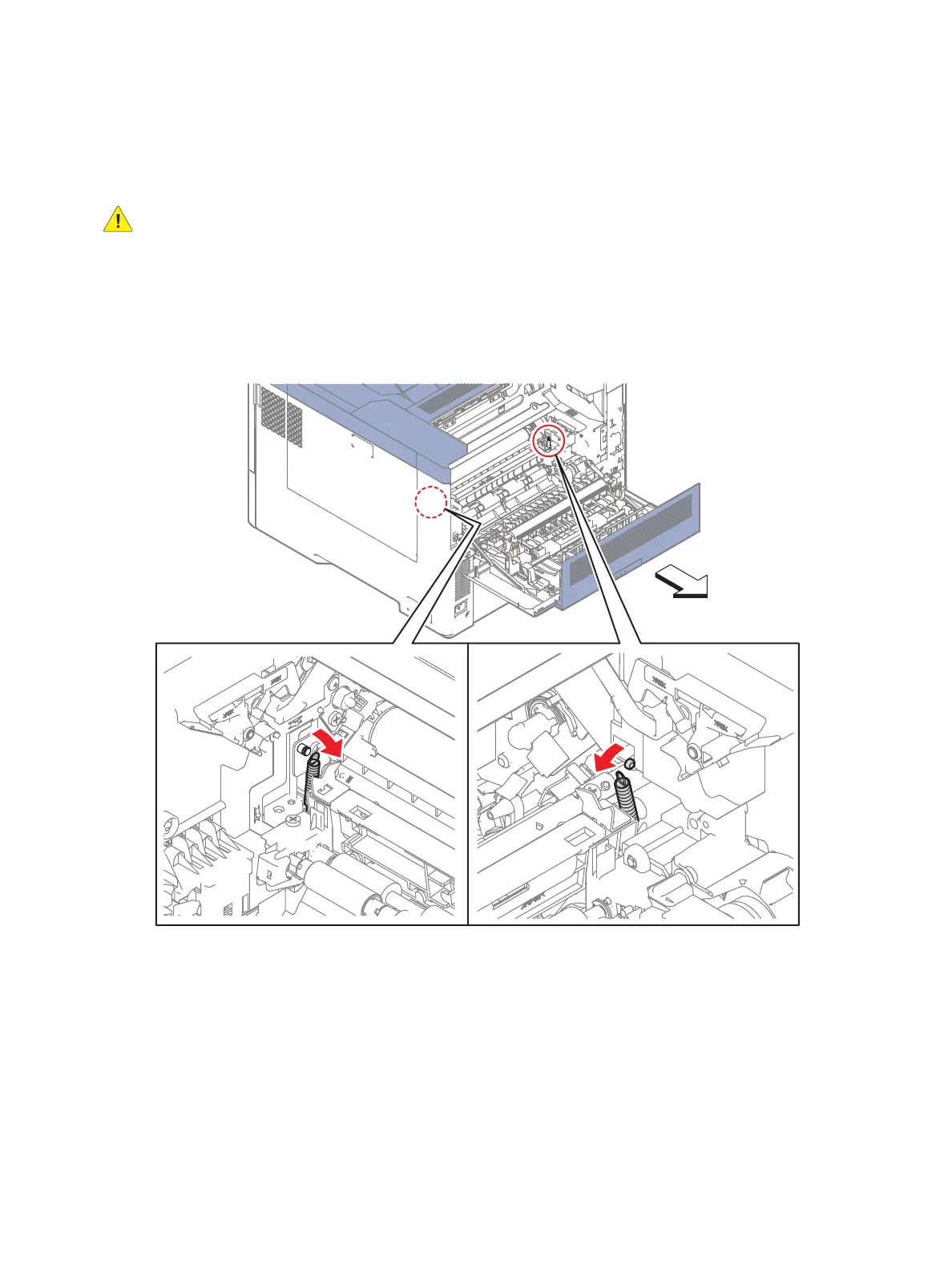

1. Remove the Upper Transfer Belt Chute Assembly. (page 4-80)
Note: When performing the following step, use caution not to drop and lose the CTD Spring
(PL6.1.13).
2. Remove the CTD Spring (PL6.1.13) from the Left Transfer Belt Guide Assembly (PL6.1.6).
3. Remove the CTD Spring from the frame.
To Next Page
