Xerox WorkCentre 6605 Service Manual

General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-40

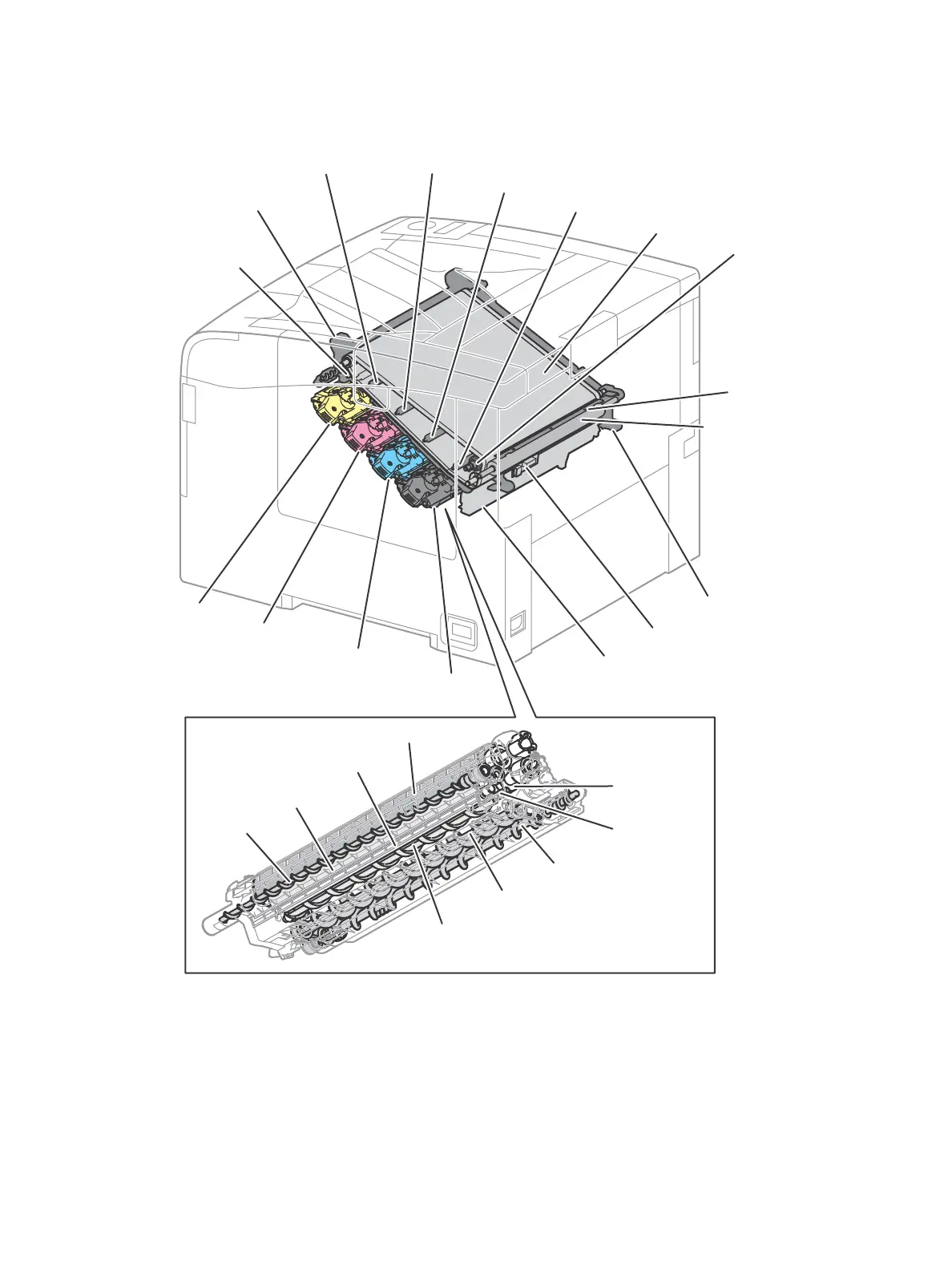

Xerographics & Transfer
s6600-260
Imaging Unit Y
Transfer Belt Assembly
1st BTR Roller (Y) 1st BTR Roller (M)
1st BTR Roller (C)
1st BTR Roller (K)
Intermediate Transfer Belt
Back Up Roller
Belt Cleaner
Imaging Unit M
Imaging Unit C
Imaging Unit K
CTD Sensor Assembly
Drum
BCR
Cleaning Roller
Cleaning Blade
Magnet Roller
Auger
Auger
Auger
Trimmer Rod
CTD Sensor
Transfer Roller Assembly
Transfer Roller 2
Eliminator

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
