Drive
SFP Drive Assembly
PL3.1.1
1. Remove the Development HVPS Board. (page 4-99)
2. Remove the IP Board. (page 4-102)
3. Release and remove the wiring harnesses from the Front IP Board Plate (PL 18.1.23).

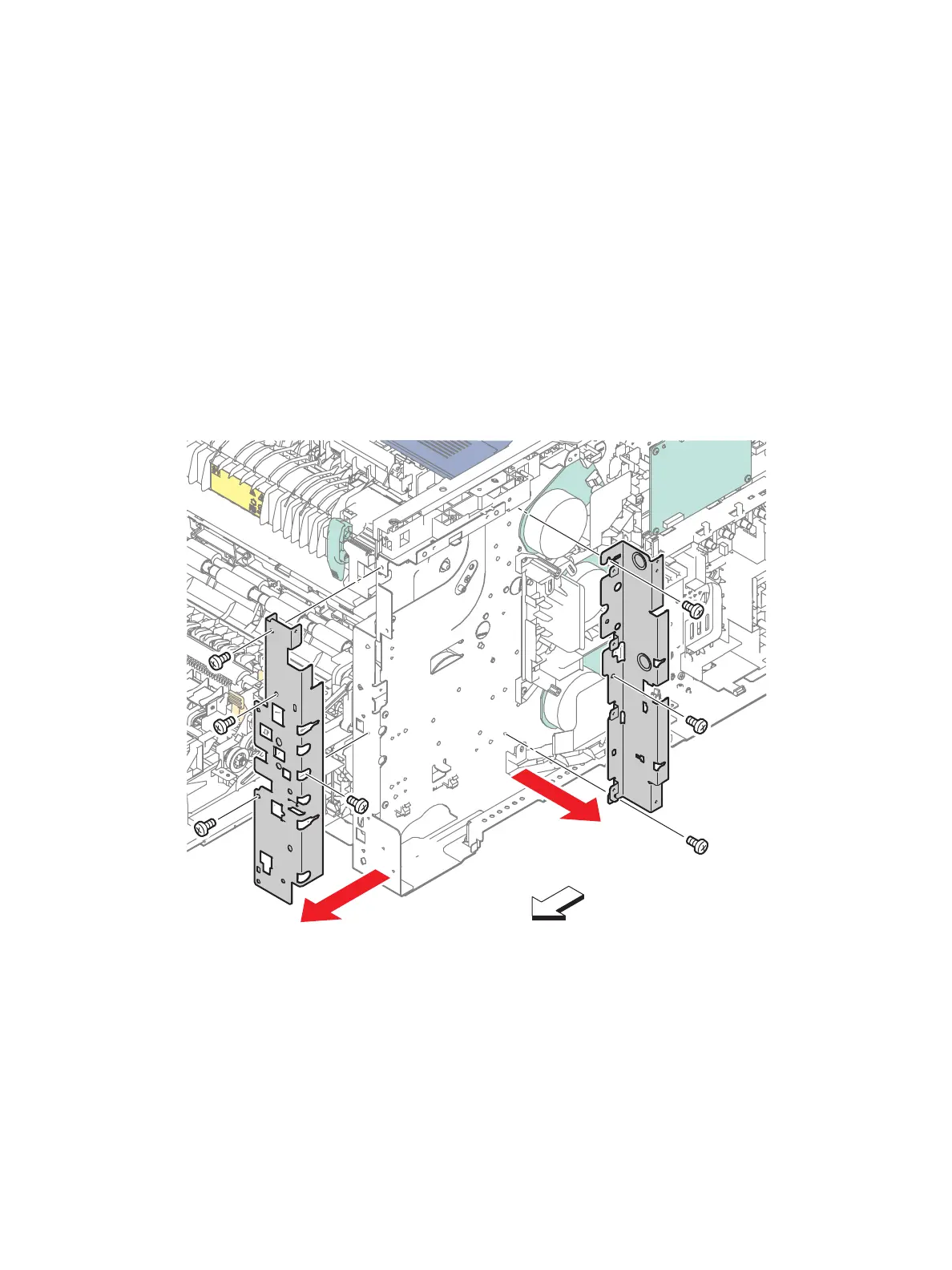

4. Remove the three screws (silver, 6mm) that attach the Front IP Board Plate to the printer and
remove the plate.
5. Remove the four screws (silver, 6mm) that attach the Rear IP Board Plate (PL18.1.24) to the
printer and remove the plate.
s6600-135
Rear
