Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-60
550 Option Main Feed Assembly
PL10.2.1
1. Remove the Optional 550-Sheet Feeder from the printer. (page 4-53)
2. Remove the 550 Option Feed Clutch Assembly. (page 4-56)
3. Unplug connectors P/J4201, P/J4202, and P/J4214 on the harness coming from the 550 Option
Main Feed Assembly (PL10.2.1), and then release the harness from the harness guide.

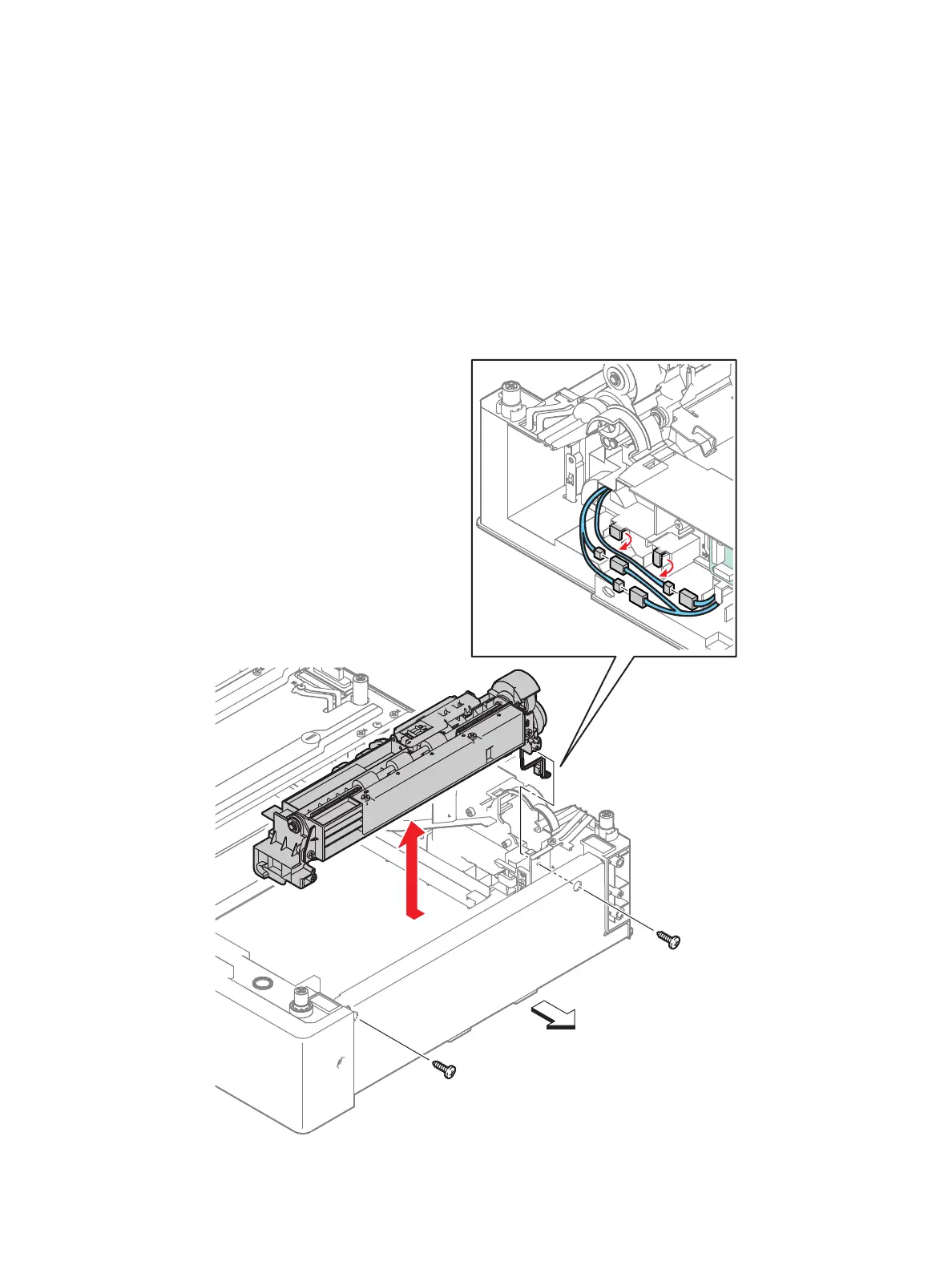

4. Remove the two screws (silver, tapping, 8mm) that attach the 550 Option Main Feed Assembly
and remove the 550 Option Main Feed Assembly while pulling the harness out of the hole on the
frame.
s6600-123
Rear
