Xerox WorkCentre 6605 Service Manual

Wiring
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
7-48
Exit
Signal line name Description
CLOCK
DATA
Control signal of the Toner Cartridge Y/M/C/K
CLOCK B
CLOCK /B
CLOCK /A
CLOCK A
Drive control signal of the Toner Dispense Motor (Y,M) / (C,K)
FRONT COVER OPEN SIGNAL FRONT COVER opening/closing detect signal by the Front Cover
Sensor
Signal line name Description

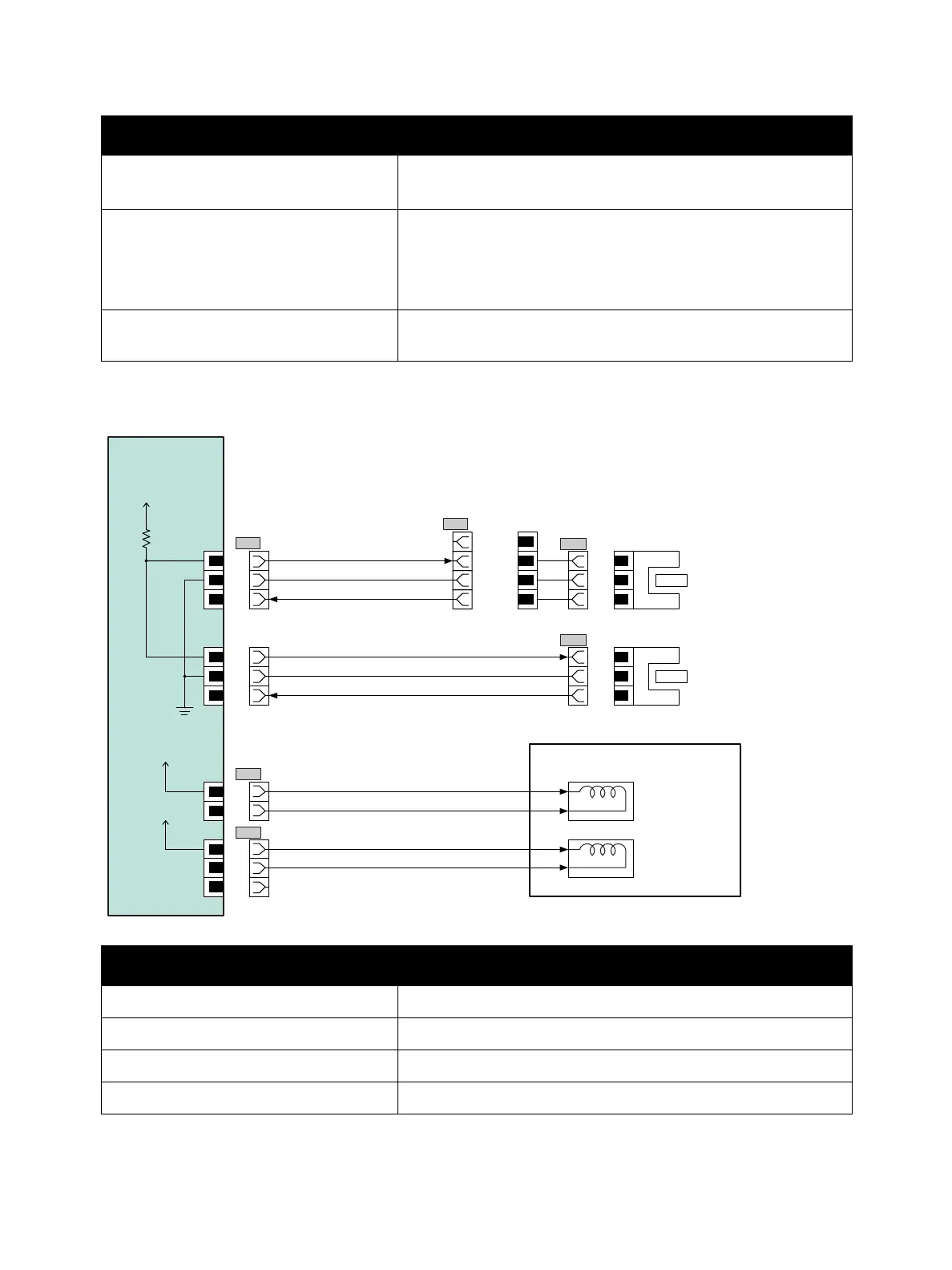

EXIT SENSED SIGNAL Detect signal of paper in the Exit section by the Exit Sensor
PAPER FULL STACK SENSED SIGNAL Paper full detect signal of the output tray by the Full Stack Sensor
EXIT CLUTCH 2 ON ON/OFF signal of the EXIT CLUTCH 2
EXIT CLUTCH 1 ON ON/OFF signal of the EXIT CLUTCH 1
MCU Board
PL18.1.13
4
5
6
P/J38
1
2
I/L +24VDC
Stack Full
Sensor
PL17.1.11
P/J154
3
2
1
+5VDC
SG
PAPER FULL STACK SENSED SIGNAL
Exit Clutch 2
I/L +24VDC
EXIT CLUTCH 2 ON
Exit Sensor
PL17.1.11
P/J15
1
2
3
P/J155
3
2
1
3 2
32
41
SG
EXIT SENSED SIGNAL
+5VDC
J151
4
P151
1
+5VDC
P/J40
1
2
I/L +24VDC
Exit Clutch 1
I/L +24VDC
EXIT CLUTCH 1 ON
Exit Drive Assembly
PL17.1.21
3
Sensor Harness Assembly
PL17.1.23
Exit Sensor Harness Assembly
PL17.1.18
s6600-231

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
