Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-145
IIT Pick-up Module
PL51.1.4

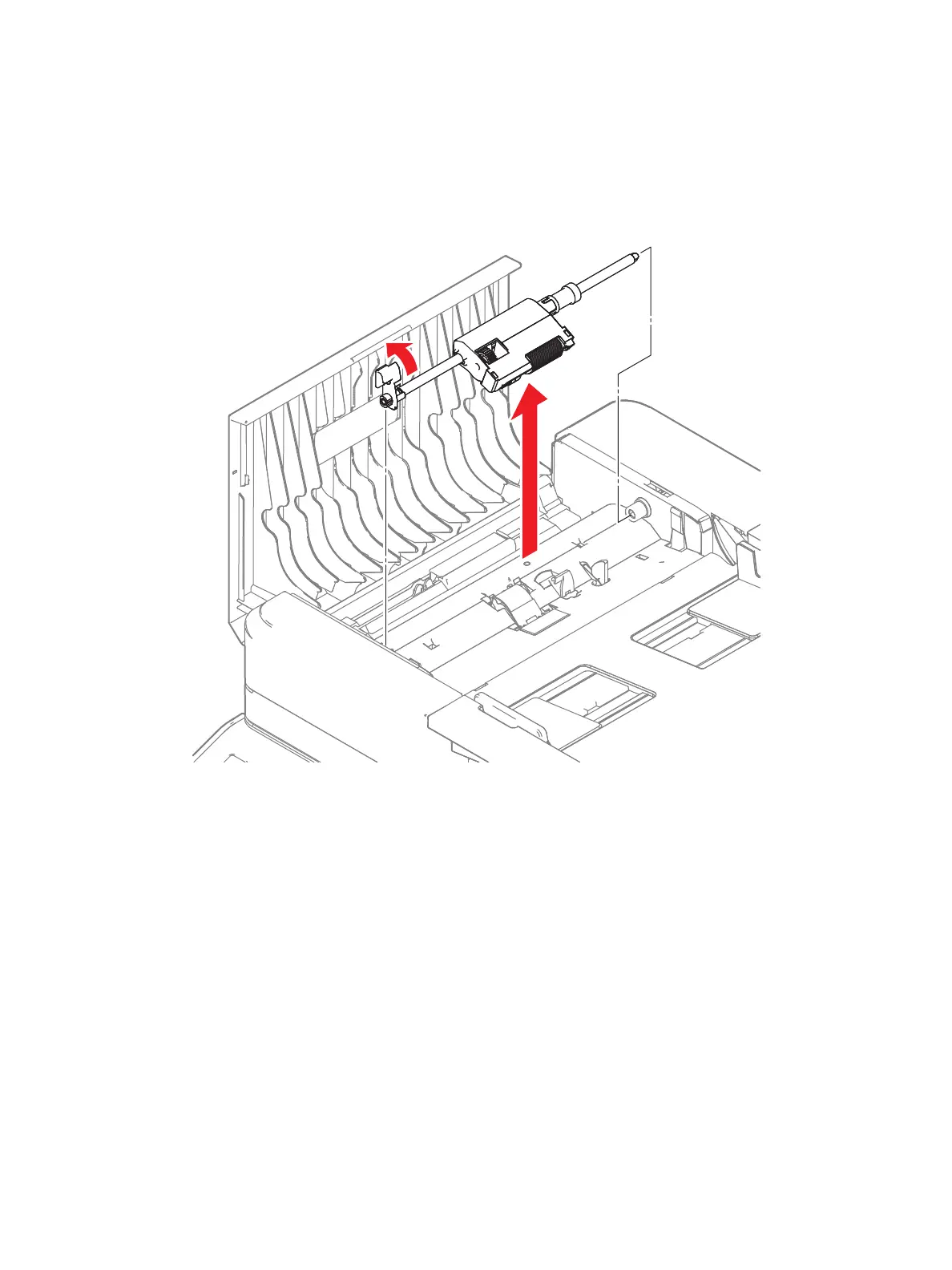

1. Open the DADF Top Cover.
2. Swing up the tab securing the IIT Pick-up until it is released and remove the IIT Pick-up.
s6600-099
