Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-144
14. Turn the Scanner Assembly over.

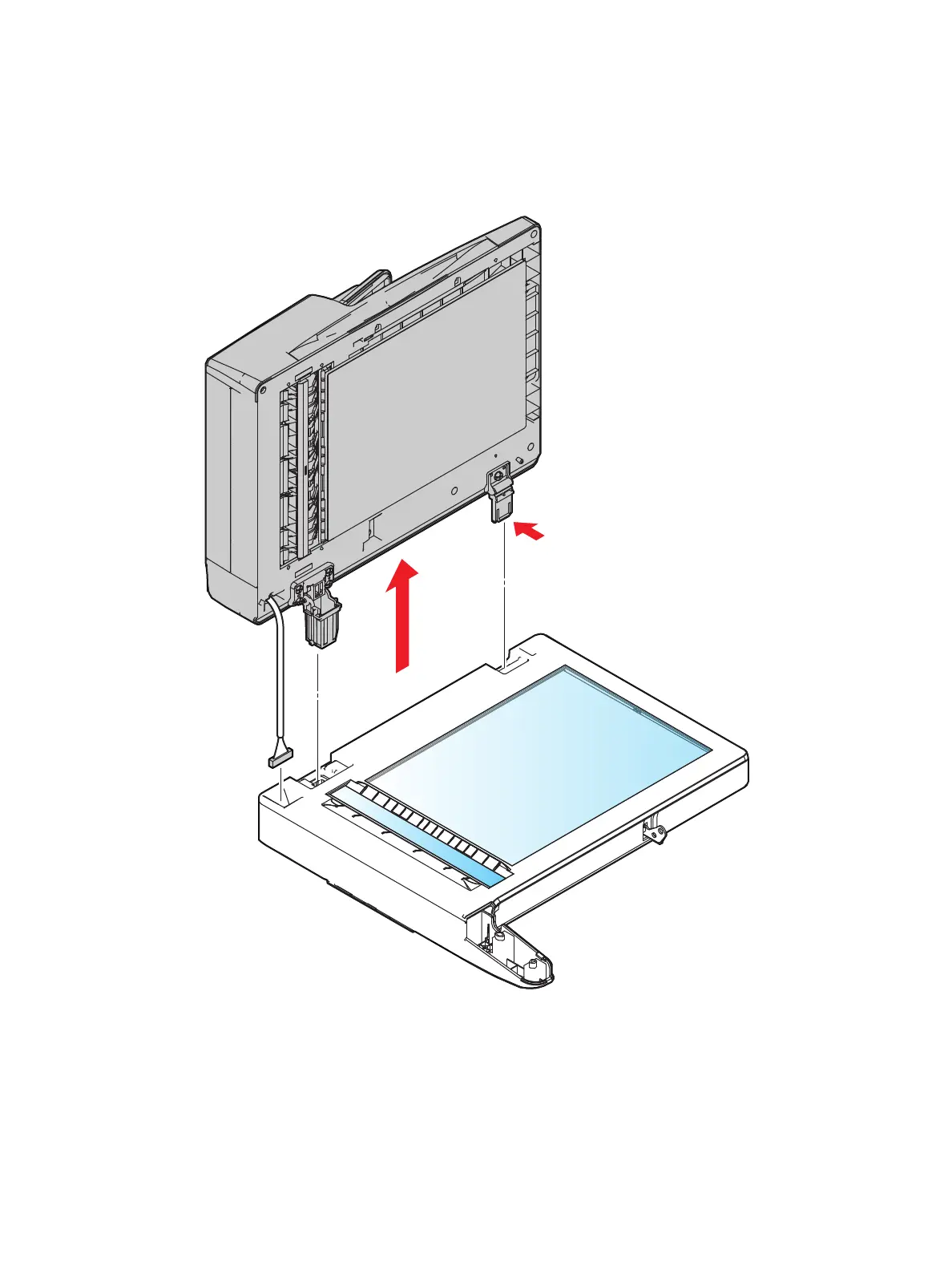

15. Open the DADF Assembly, release the hook on the R Hinge (PL51.1.8) using a flatblade
screwdriver or the like, and separate the DADF Assembly from the IIT Assembly while pulling the
harness out through the hole on the IIT Assembly.
s6600-098
