Xerox WorkCentre 6605 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-77

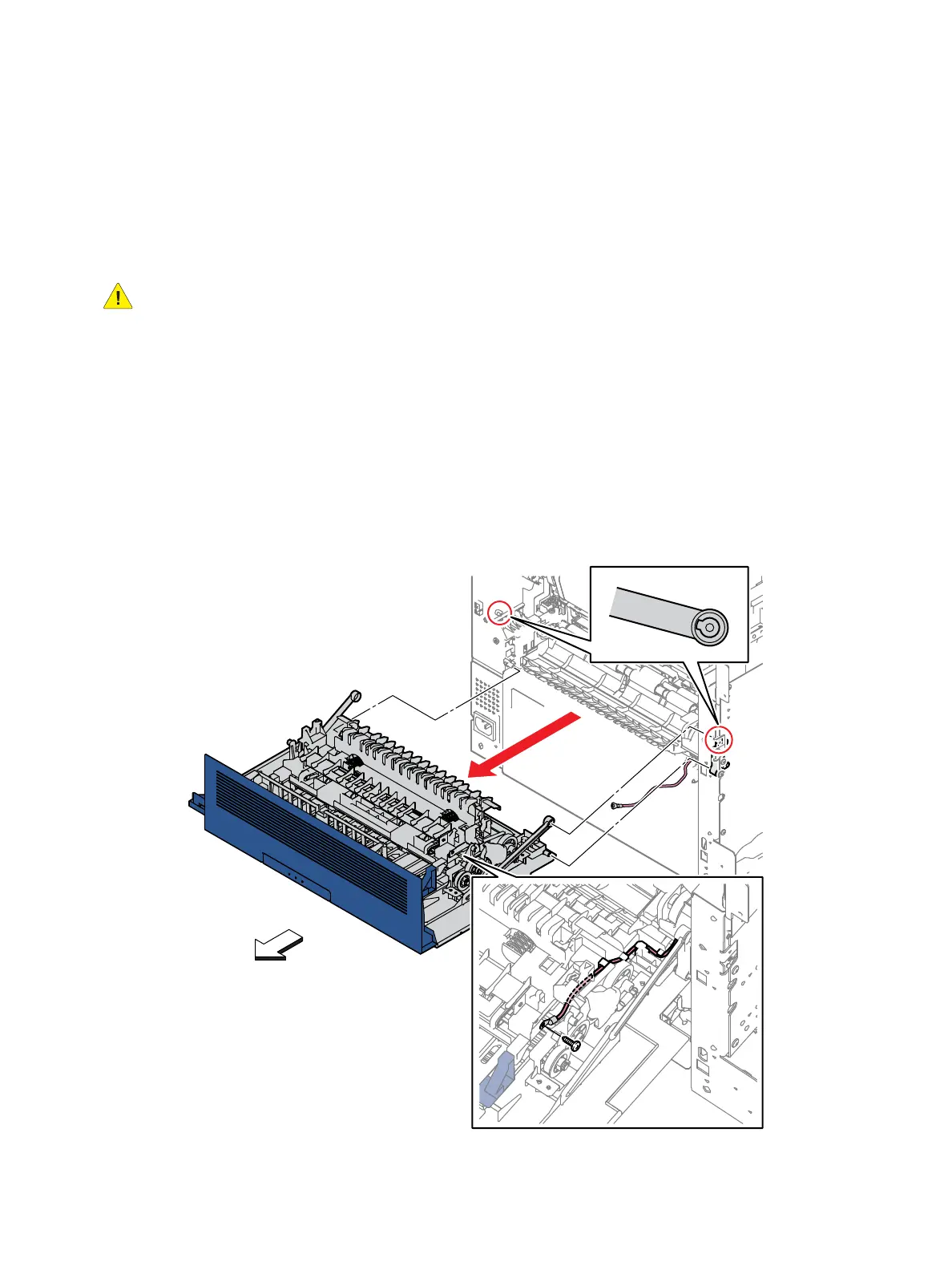

Duplex
Duplex Assembly
PL14.1.1
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Open the Rear Door Assembly (PL19.1.95).
2. Remove the Transfer Roller. (page 4-79)
3. Remove the screw (silver, tapping, 8mm) that attaches the power supply (pink wire) to the Duplex
Assembly (PL14.1.1), and release the wire from the harness guide.
4. Remove the Rear Cover Links by raising the Rear Cover slightly so that the holes on the Rear Cover
Links can be released from the keyed bosses on the left and right.
5. Raise the steel hinge pin on the left side and slide the pin to the right to remove it.
6. Swing the right side of the assembly out so that the corner is clear of the frame, then move the
assembly to the left to disengage the hinge pin on the right side. When the grounding spring is
clear of the hinge pin, lift the Rear Cover/Duplex Assembly away from the printer.
s6600-183
Rear

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
