Duplex Feeding (Optional)
After the sheet is passed through the Heat Roller and the printing on the side 1 is completed, the
rotation direction of the Exit Roller is changed to the duplex feed direction at the proper timing, and
the sheet is nipped in the Duplex Assembly.
When the drive of the Main Motor is transferred to the Exit Clutch 2, the Exit Roller is rotated in the
duplex direction.
Also, the Duplex Roller is rotated by the drive of the Paper Transport Motor, and the sheet is fed to the
registration position.

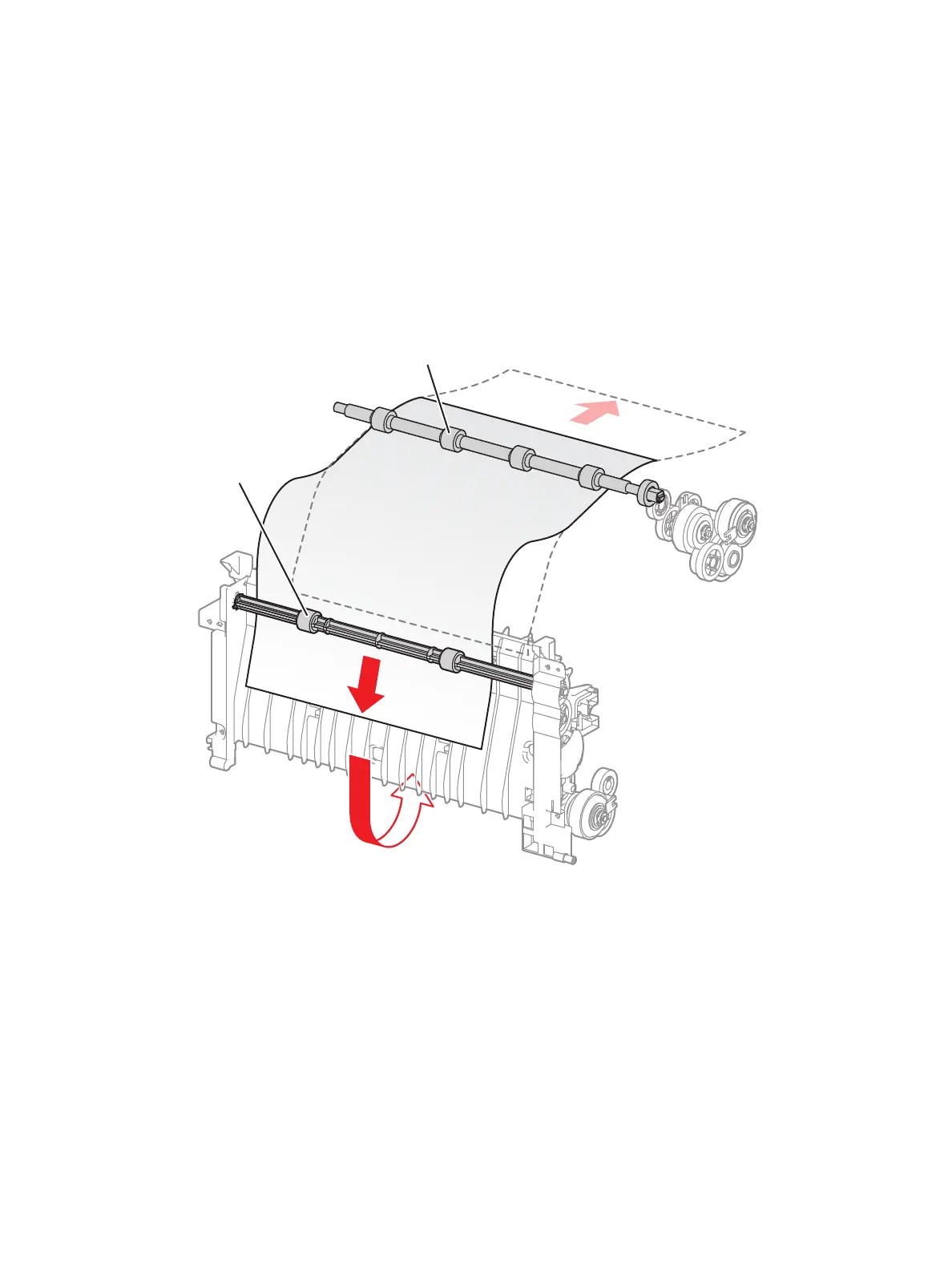

s6600-265
Exit Roller
Duplex Roller
