Feed Roller Assembly
PL15.2.7
1. Remove the 550 Cassette Assembly from the printer.
2. Remove the Bypass Tray Assembly. (page 4-71)

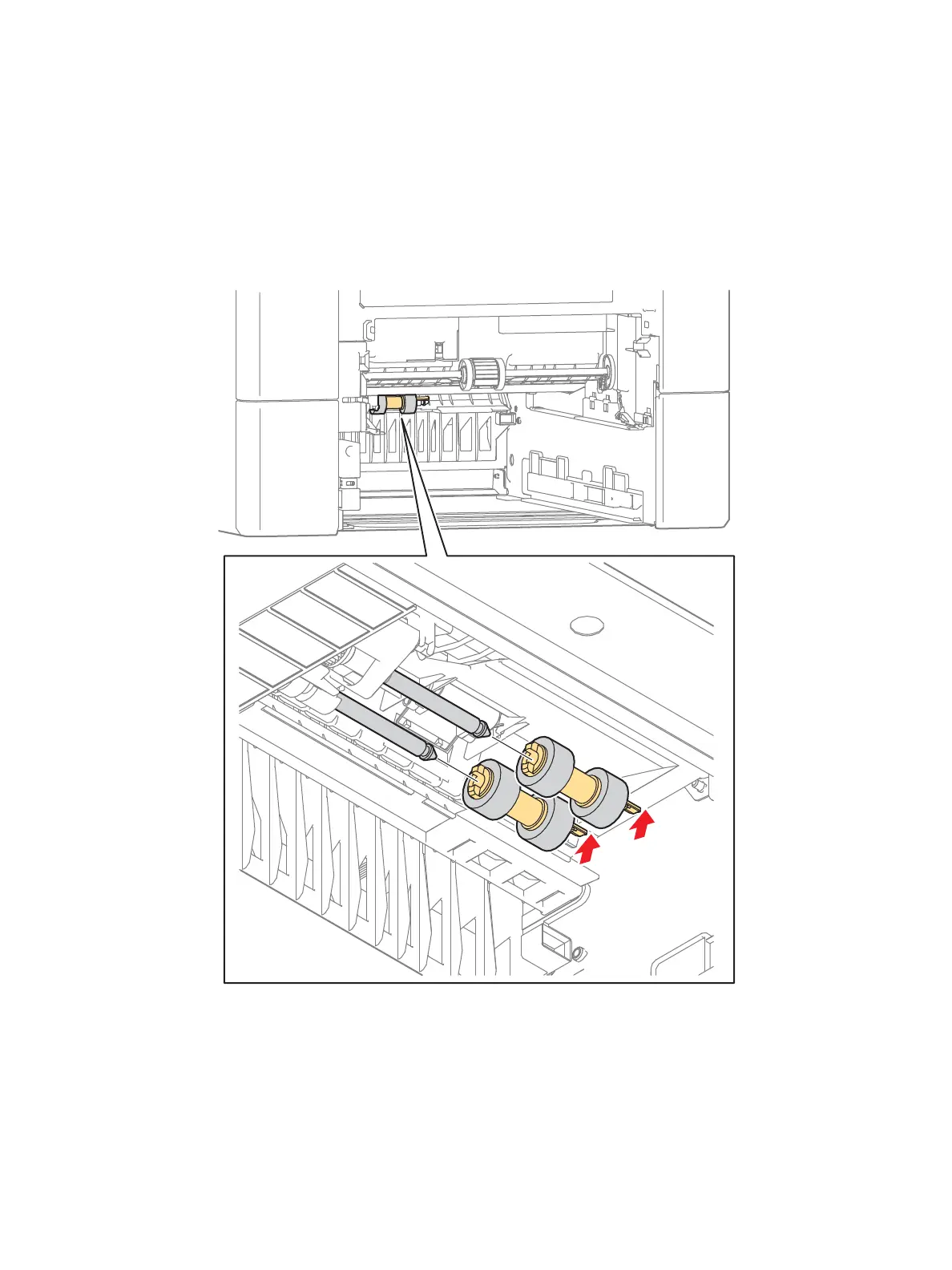

3. Release the latch that holds the Feed Roller Assembly on the shaft, and slide the roller to the right
off the shaft.
s6600-185
