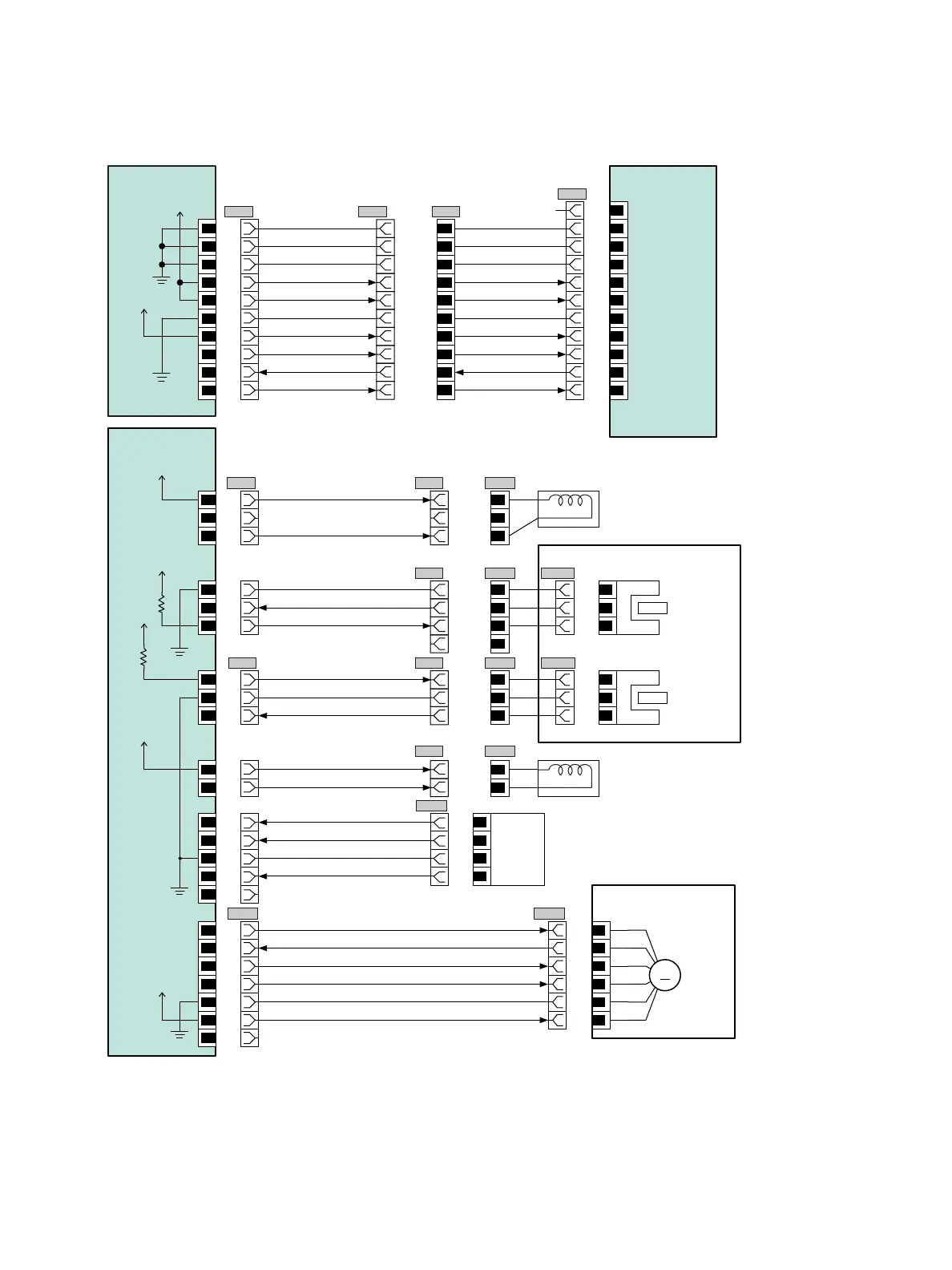

Wiring
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
7-49
550 Feeder
H Feed Board
PL10.1.10
P/J420
1
2
3
4
5
6
I/L +24VDC
I/L +24VDC
Option Feed
Clutch Assembly
PL10.1.8
550 Option Registration
Clutch Assembly
PL10.2.2
Registration
Sensor
550 Size Switch Assembly
PL10.1.11
P/J4211
4
3
2
1
6
7
8
9
SIZE3
SIZE2
SG
SIZE1
550 Option Drive Assembly
PL10.1.9
J4201
3
P4201
1
22
31
TURN ROLL CLUTCH ON
J4202
4
P4202
1
23
32
41
P/J4203
3
2
1
SG
TRAY PAPER SENSED SIGNAL
+3.3VDC
P/J422
1
2
3
OP FEED MOTOR ON
OP FEED MOTOR ALARM
OP FEED MOTOR CLOCK
4
OP FEED MOTOR GAIN
J4213
2
P4213
1
21
RTN
5
6
7
I/L +24VDC
Feeder
Motor
P/J4221
6
5
4
3
2
1
1
2
P/J421
3
4
5
I/L +24VDC
FEED ROLL CLUTCH ON
P/J4212
3
2
1
J4214
3
P4214
1
22
31
SG
REGI PAPER SENSED SIGNAL
+3.3VDC
+3.3VDC
+3.3VDC
I/L +24VDC
MCU Board
PL18.1.13
P/J27
1
2
3
4
5
6
7
8
9
10
DP271
10
DJ271
1
29
38
47
56
65
74
83
92
101
10
9
8
7
6
5
4
3
2
1
H Feed Board
PL10.1.10
RTN
RTN
RTN
I/L +24VDC
I/L +24VDC
SG
+3.3VDC
FEED TXD
FEED RXD
+3.3VDC
FEED TRAY SENS
P/J419
11
N.C.
I/L +24VDC
No Paper
Sensor
10
550 Option Main Feed Assembly
PL10.2.1
I/L +24VDC
Drawer 1 Feeder Harness Assembly
PL10.1.13
Main Harness Assembly
PL18.2.3
C2 Turn Harness Assembly
PL10.1.15
C2 Size Harness Assembly
PL10.1.14
Feeder Motor Harness Assembly
PL10.1.16
s6600-232
