Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-129
Rear Door Assembly
PL19.1.95

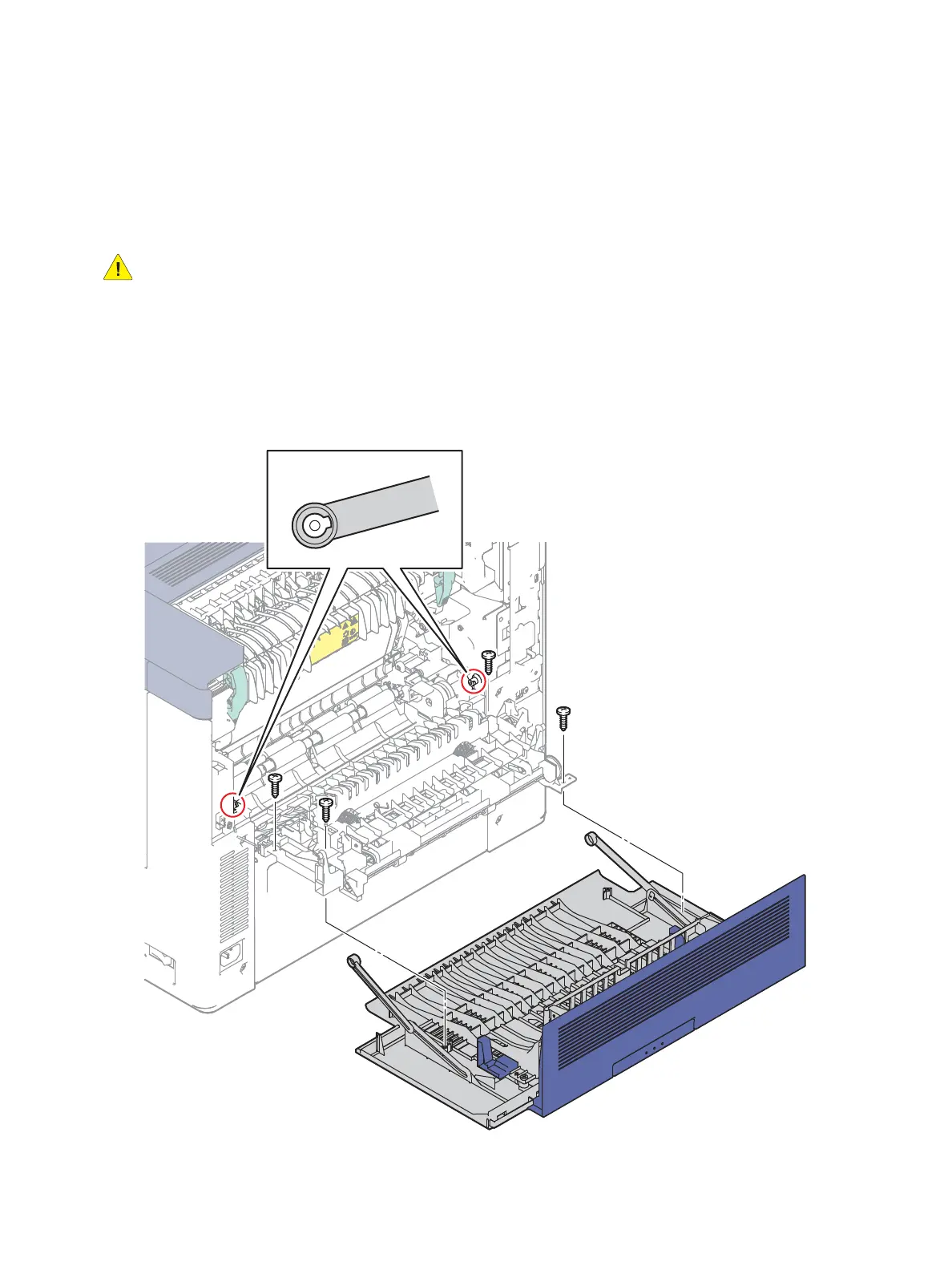

1. Open the Rear Door Assembly .
2. Remove the Transfer Roller. (page 4-79)
CAUTION: To prevent the door from falling off as you remove the screws, support the door from
underneath.
3. Remove the four screws (silver, tapping, 8mm) that attach the Rear Door Assembly to the printer
and remove the cover.
Note: The removal procedure for Rear Cover Link is the same on both the right and left sides.
4. Remove the Rear Cover Links (PL19.1.14) by raising the Rear Cover slightly so that the hole on each
Rear Cover Link can be released from the boss holding it to the printer.
s6600-198
