Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-127
Right Interlock Switch Assembly
PL19.1.21
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Right Cover Assembly. (page 4-131)
2. Unplug connector P/J42 from the LVPS (PL18.1.34), and release the harness from the guides.
3. Open the Top Cover.

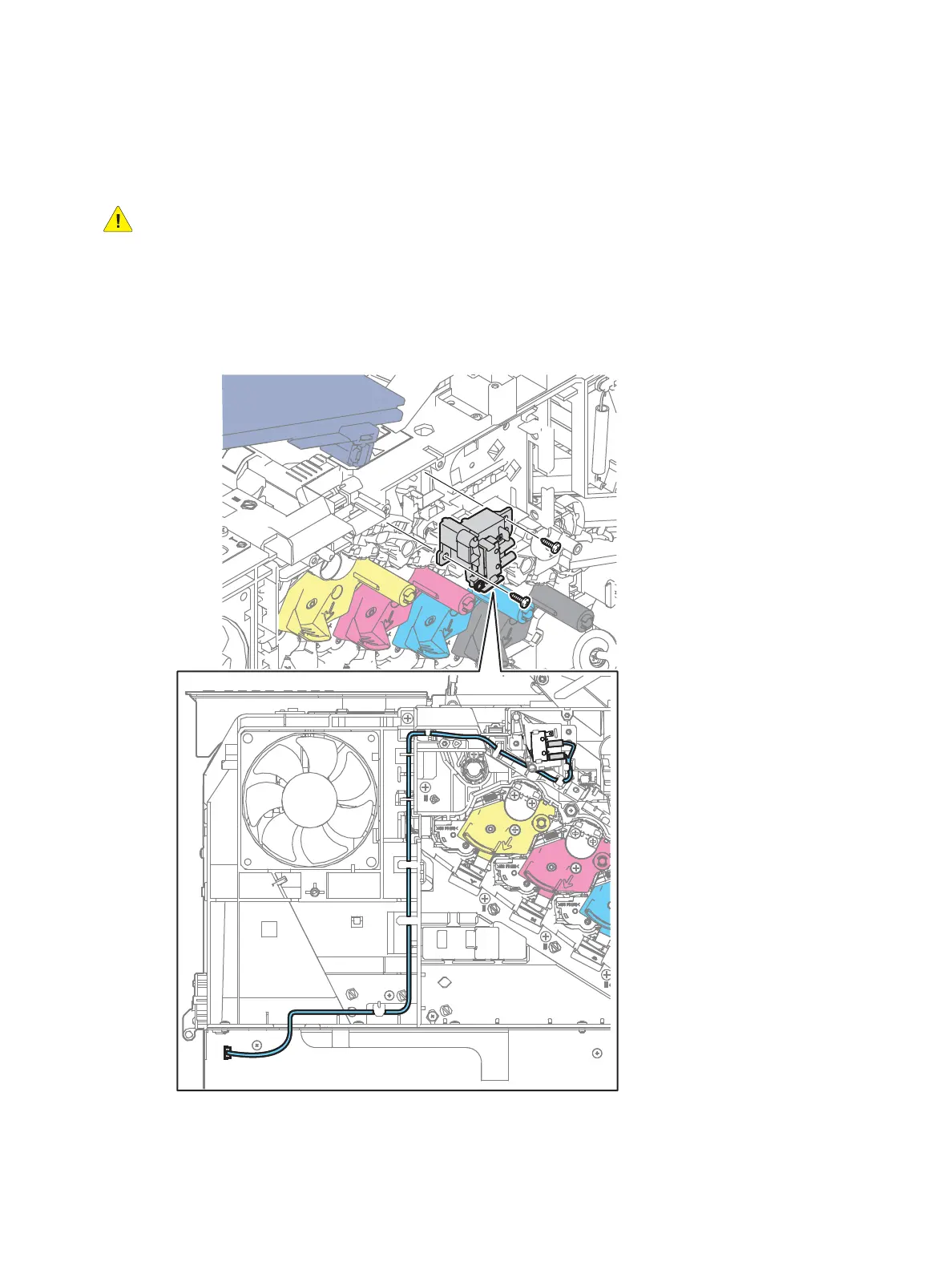

4. Remove the two screws (silver, tapping, 8mm) that attach the Right Side Interlock Bracket
(PL19.1.22) to the printer and remove the Right Interlock Switch Assembly.
s6600-196
P/J42
