Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-122
MFP Upper Right Hand Pole Cover
PL19.1.19
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Fuser Assembly. (page 4-46)

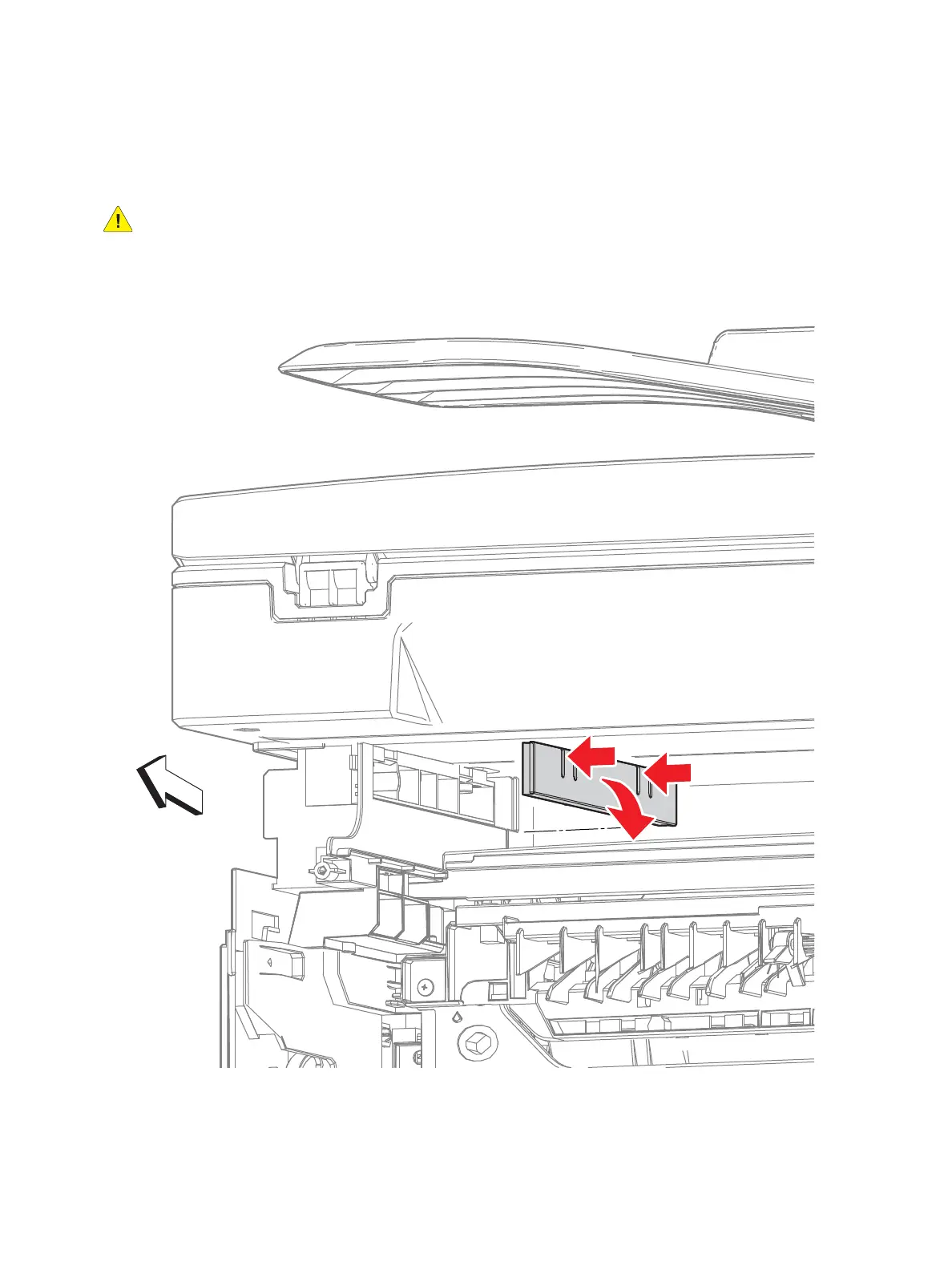

2. Carefully pry out the Upper Right Hand Pole Cover with a small flat-blade screwdriver or similar
tool.
