Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-93
Exit
Exit Assembly
(PL17.1.1)
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Right Cover Assembly. (page 4-131)
2. Remove the Exit Cover. (page 4-125)

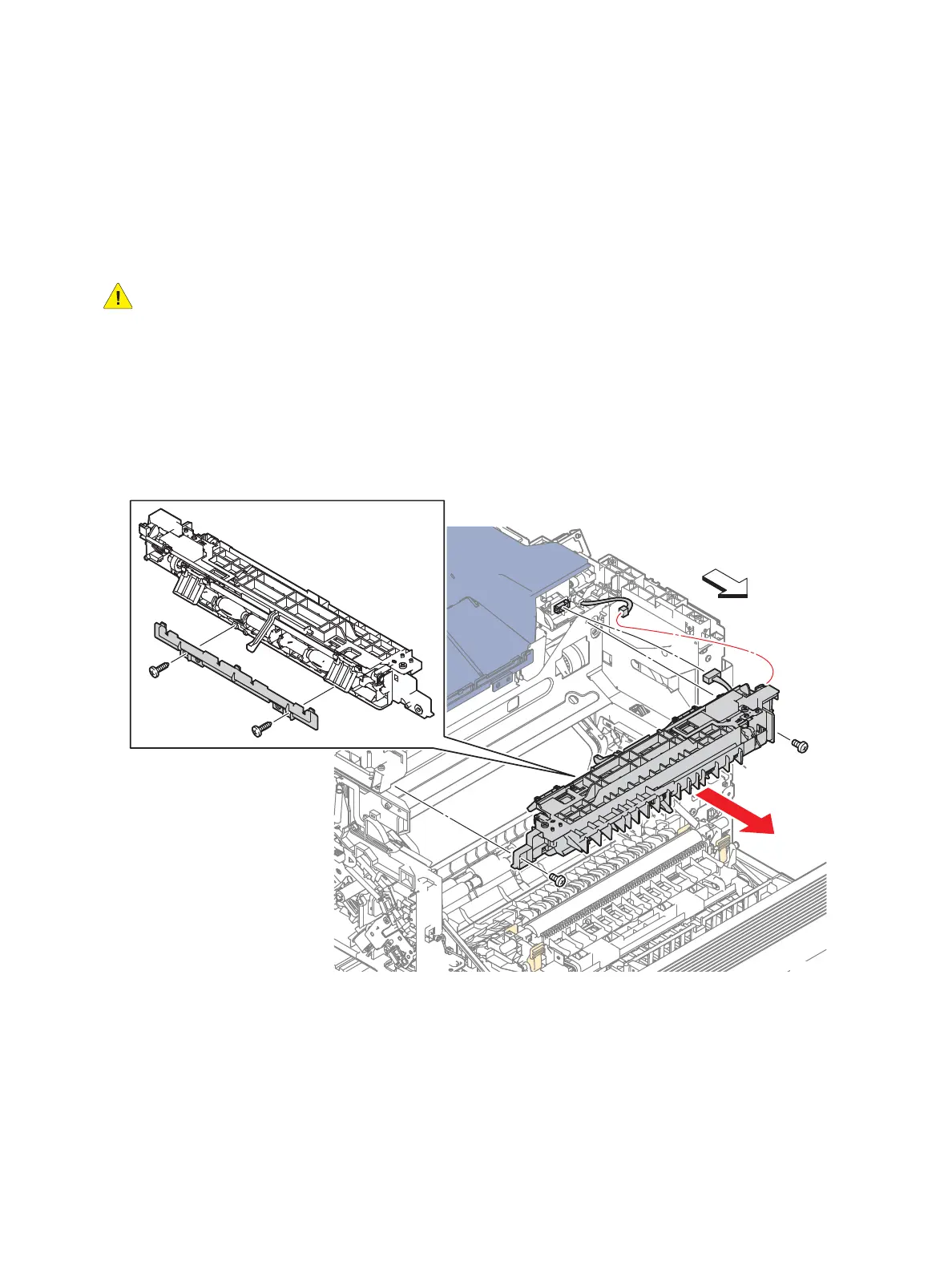

3. Remove the two screws (silver, 6mm) that attach the Exit Assembly (PL17.1.1) to the printer and
remove the Exit Assembly.
4. Unplug connectors P/J151 and P/J154 of the Exit Assembly.
5. Remove the two screws (silver, tapping, 8mm) that attach the Exit Tray Cover (PL17.1.20) to the
Exit Assembly and remove the cover.
s6600-084
To Next Page
