Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-24

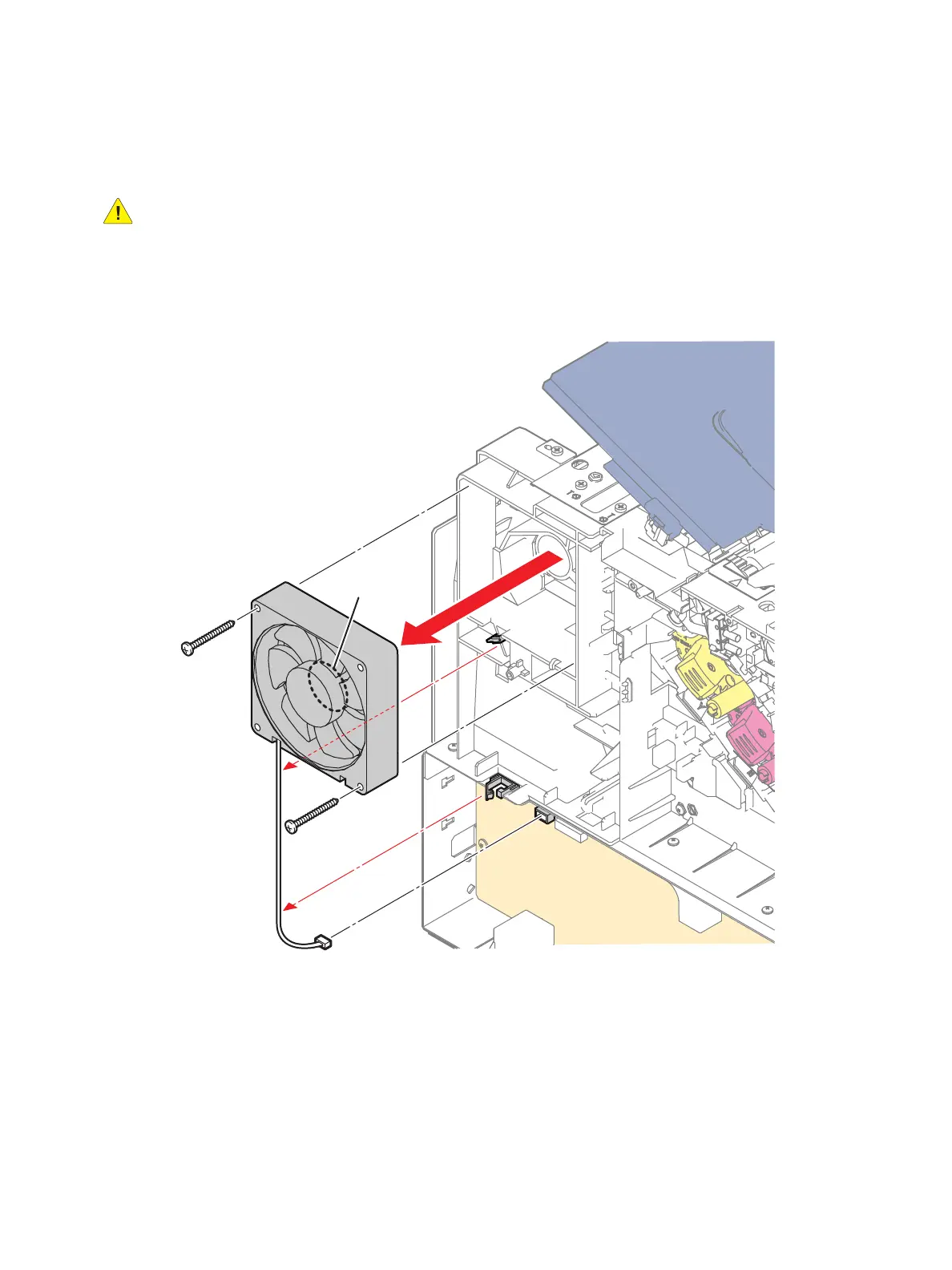

Main Fan
PL4.1.13
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Right Cover Assembly. (page 4-131)
2. Unplug connecter P/J503 from the LVPS (PL18.1.34), and release the harness from the clamp.
3. Remove the two screws (silver, tapping, 30mm) that attach the Main Fan (PL4.1.13) to the printer
and remove the fan.
Replacement Note: Orient the Main Fan during installation so that the label side faces inward.
