Xerox WorkCentre 6605 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-88
12. Remove the four screws (silver, tapping, 8mm) that attach the Regi Chute Assembly.
13. Remove the two screws (silver, tapping, 8mm) that attach the Rear Hinge Bracket (PL14.1.4) and
remove the Rear Hinge Bracket.
14. Remove the Regi Chute Assembly by releasing its right lug from the recess while moving the shaft
end of the Regi Clutch Assembly along the recess on the left frame of the printer.
Replacement Note: When installing the Inner Transfer Wire Housing Assembly, check that the
ends of the four springs fit correctly into the holes.

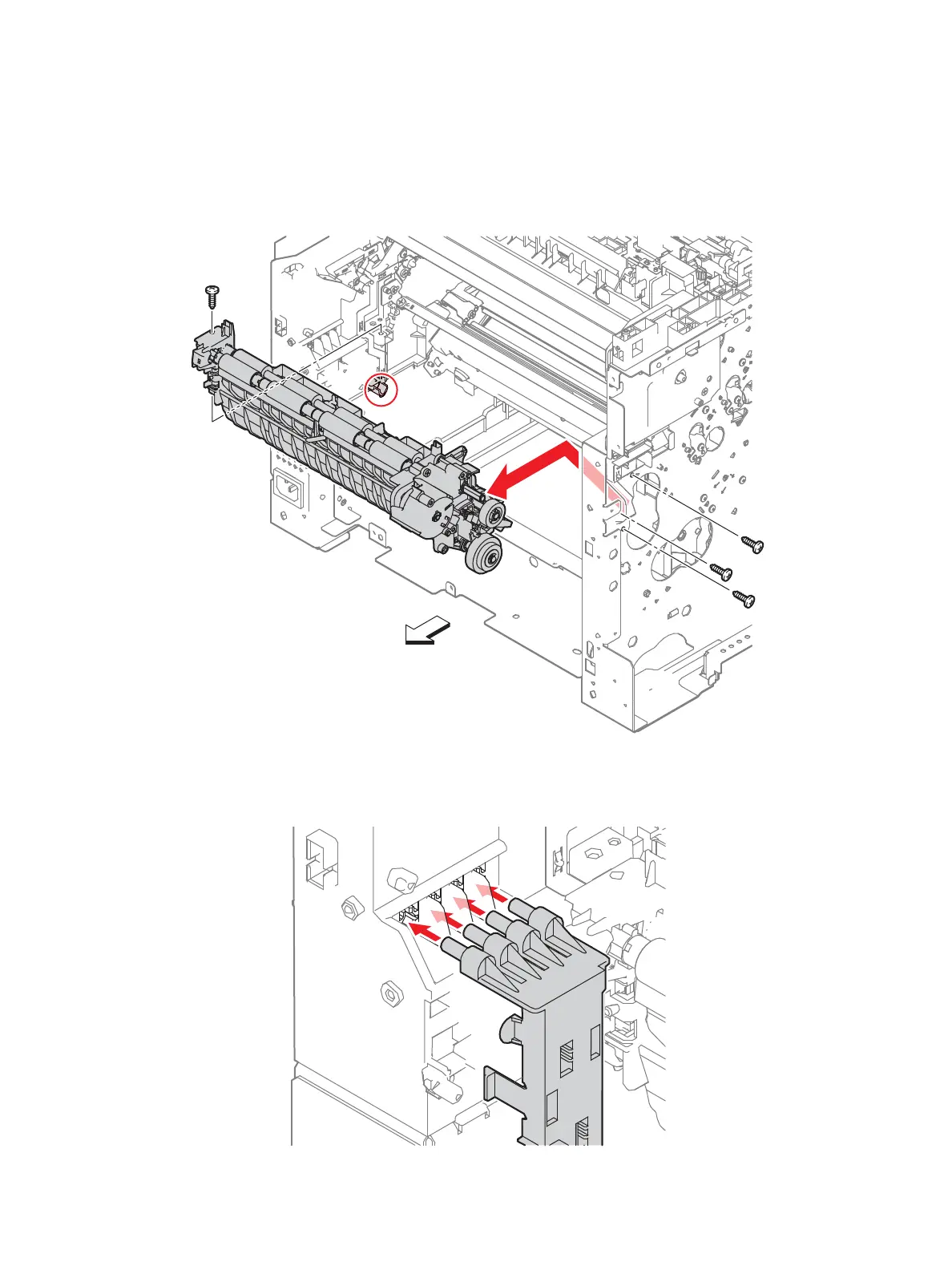

s6600-079
Rear
s6600-186
