Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-87

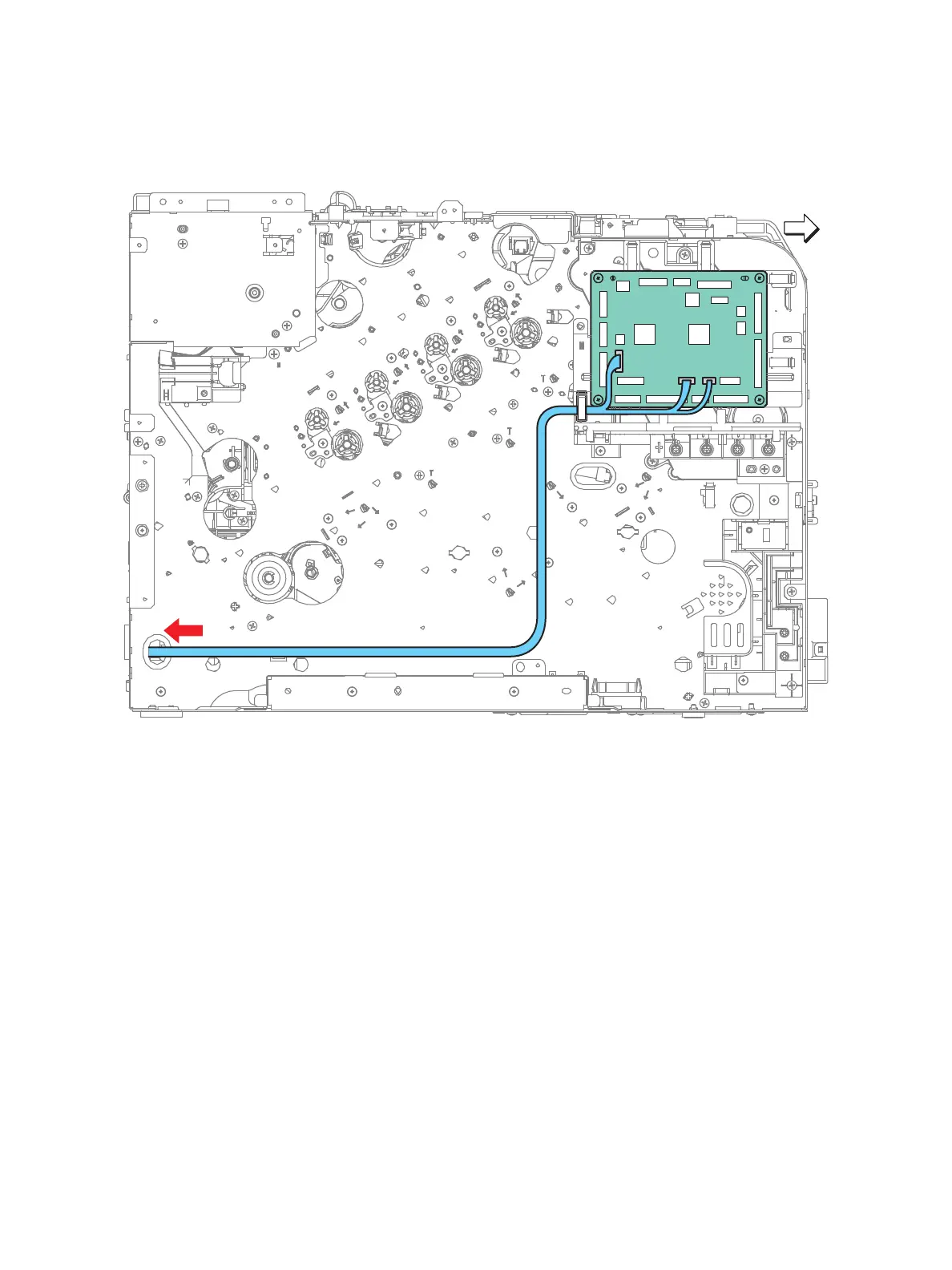

10. Unplug connectors P/J13, P/J23, and P/J39 from the MCU Board (PL18.1.13), and release the
harness from the clamp.
11. Pull the harness out of the hole on the frame.
s6600-083
Front
