Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-36
Replacement Notes:
• The Dispenser Assemblies must be installed in Y, M, C, K order from top to bottom.

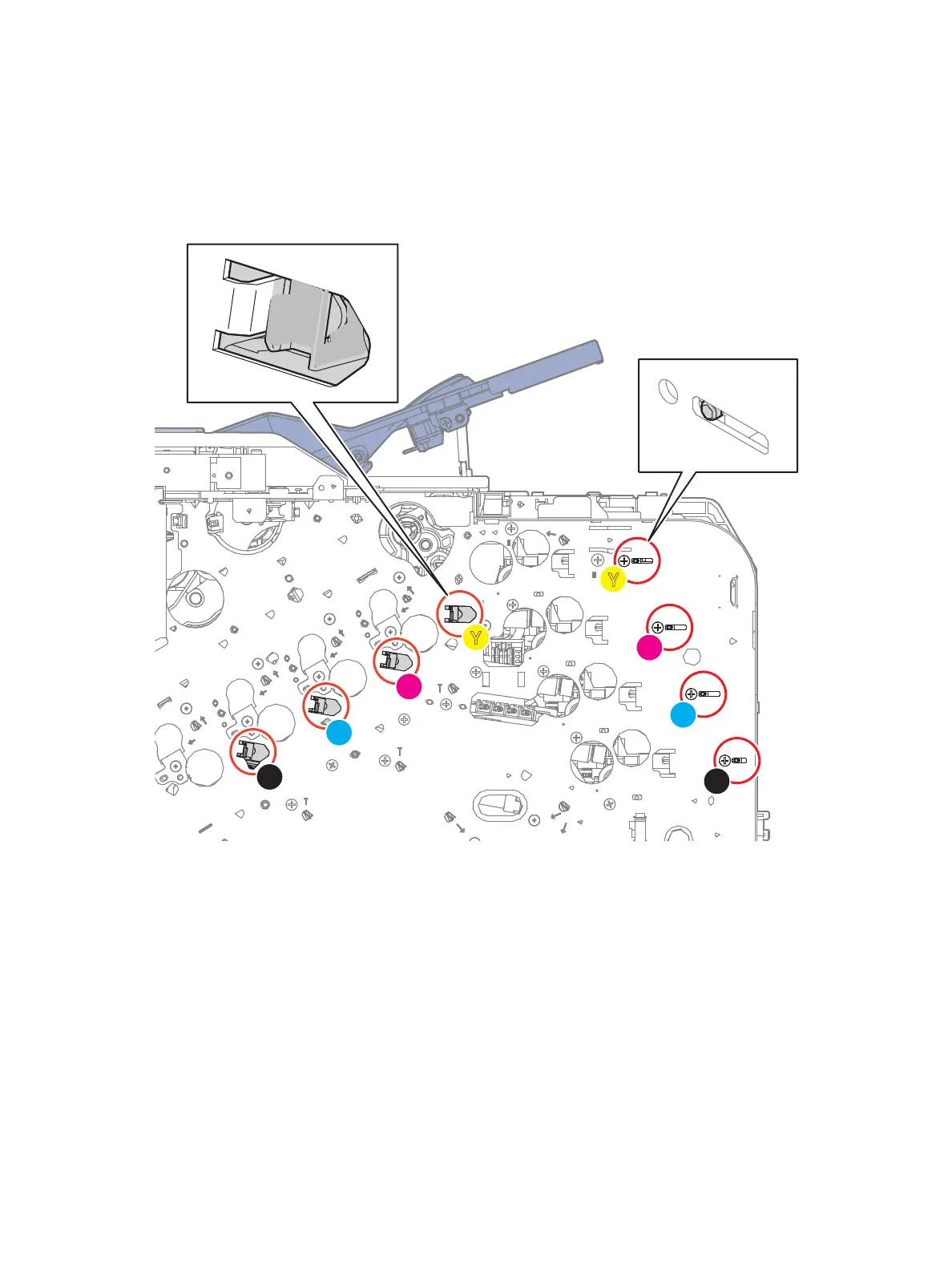

• When installing the Dispenser Assemblies, make sure that the lug on the front and the
hook on the rear are correctly in place as shown in the drawing.
• Reconnect the harness for each dispenser before fully seating the dispenser in the frame.
s6600-154
Y
M
C
K
Y
M
C
K
