Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-35

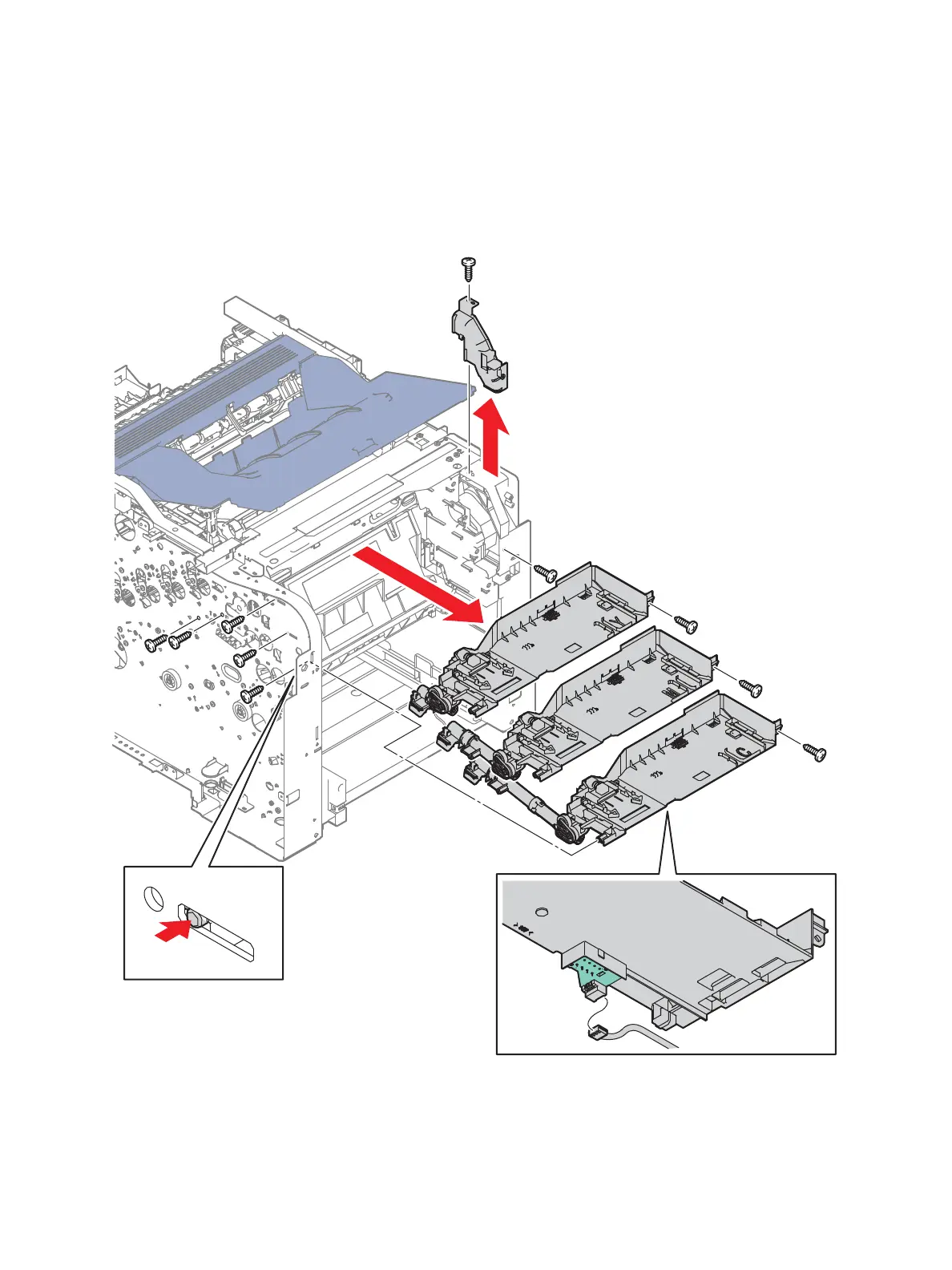

8. Remove the two screws (silver, tapping, 8mm) that attach the Frame Duct (PL4.1.1) to the printer
and remove the duct.
9. Disengage the connectors connected to the Dispenser Assemblies in the order of C, M, and Y.
Remove the three screws (silver, tapping, 8mm) that attach each Dispenser Assembly, and pull the
Dispenser Assemblies to the front in the order of C, M, and Y while pressing the lug on the left side
inward with a screwdriver.
s6600-067
