Xerox WorkCentre 6605 Service Manual

Image Quality
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
3-15

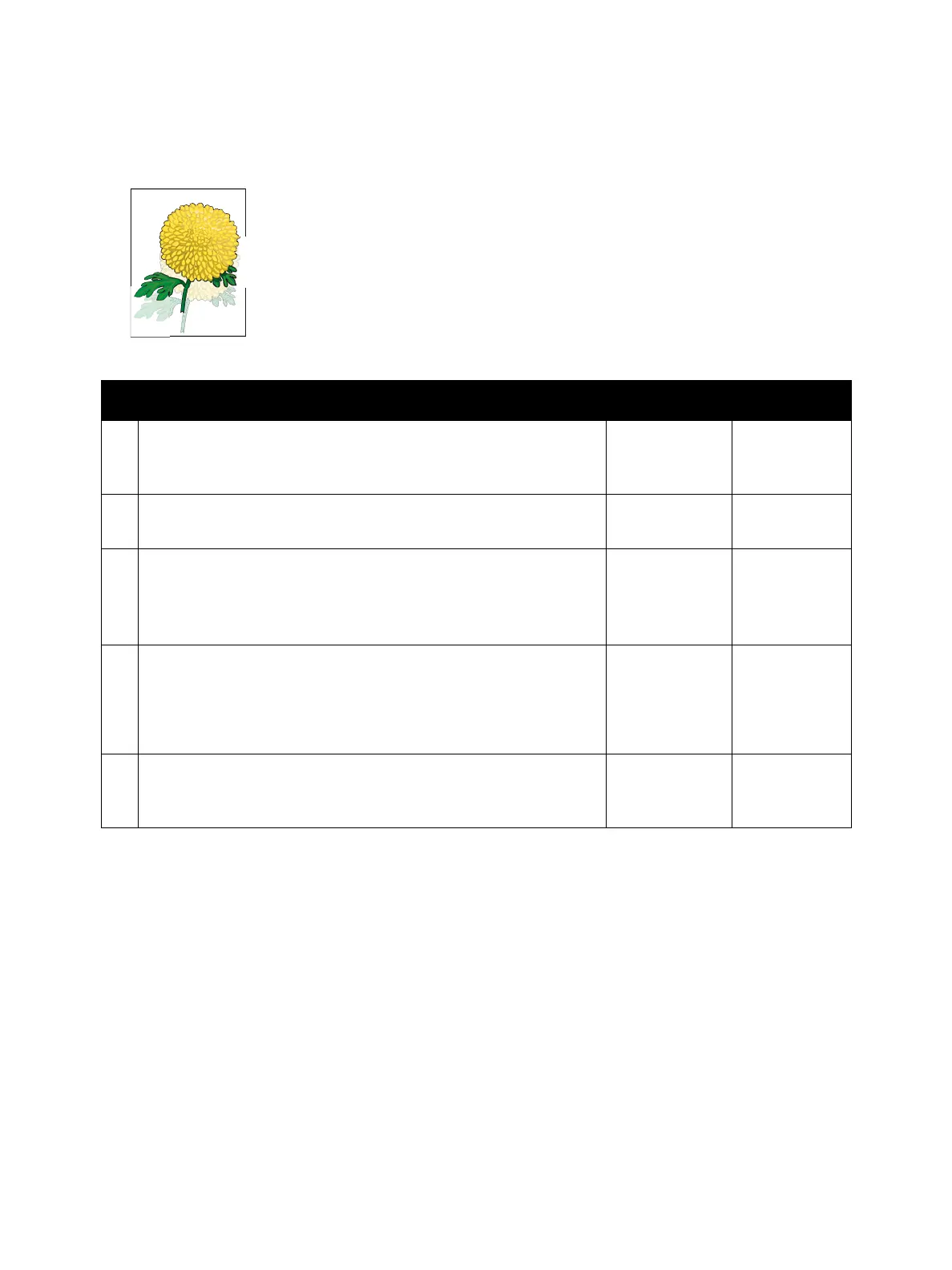

Ghosting
Possible causative parts
•Imaging Unit Y/M/C/K (PL8.1.2/PL8.1.3/PL8.1.4/PL8.1.5)
• Transfer Belt Assembly (PL6.1.1)
Action Yes No
1 If you are using non-recommended print media, switch to the print
media recommended for the printer.
Does this solve your problem?
The task is
complete.
Go to action 2.
2 Replace the Imaging Units.
Does this solve your problem?
The task is
complete.
Go to action 3.
3 Adjust the Transfer Belt Offset.
Decrease the K Offset or YMC Offset as appropriate. Refer to
“Adjusting the Transfer Belt Offsets” on page 6-22.
Does this solve your problem?
The task is
complete.
Go to action 4.
4 Check the installation status of the Transfer Belt Assembly.
Is the Transfer Belt Assembly HV terminal clean, and is it contacted
to the spring correctly?
Go to action 5. Clean the HV
terminal.
Reinstall the
Transfer Belt
Assembly.
5 Replace the Transfer Belt Assembly.
Does the problem persist even after the Transfer Belt Assembly is
replaced with a new one?
Contact Xerox
Te ch ni ca l
Support.
The task is
complete.
Residual Image/Ghosting

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
