Xerox WorkCentre 6605

Image Quality
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
3-18

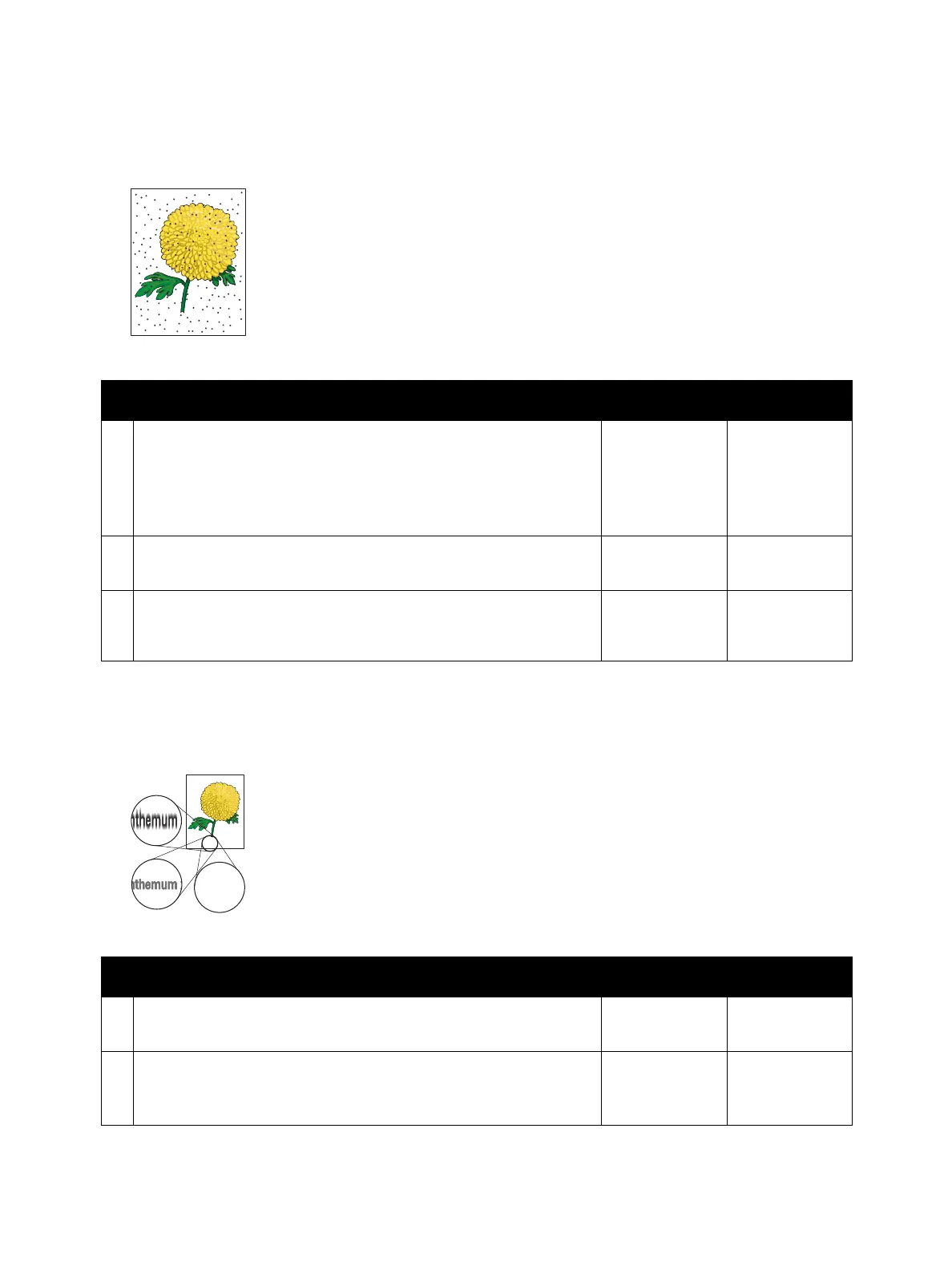

Bead-Carry-Out (BCO)
Jagged characters
Possible causative parts
•Imaging Unit Y/M/C/K (PL8.1.2/PL8.1.3/PL8.1.4/PL8.1.5)
• Development HVPS Board (PL18.1.14)
Action Yes No
1 If the printer is installed in a high altitude location, set the altitude
of the location.
1. Adjust the printer for the correct altitude. See “Adjusting
Altitude” on page 6-22
Does this solve your problem?
The task is
complete.
Go to action 2.
2 Replace the Imaging Units.
Does this solve your problem?
The task is
complete.
Go to action 3.
3 Check the Development HVPS Board connector connection.
Is the Development HVPS Board connector connected correctly?
Replace the
Development
HVPS Board.
Connect the
connector.
Possible causative parts
• IP Board (PL18.1.22)
Action Yes No
1On the Printing Options tab, set Print Quality to Enhanced.
Does this solve your problem?
The task is
complete.
Go to action 2.
2 If using a downloaded font, ensure that the font is recommended
for the printer, operating system, and the application being used.
Does this solve your problem?
The task is
complete.
Replace the IP
Board.
Bead Carryout
Fuzzy Text
