Xerox WorkCentre 6605 Service Manual

Image Quality
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
3-20

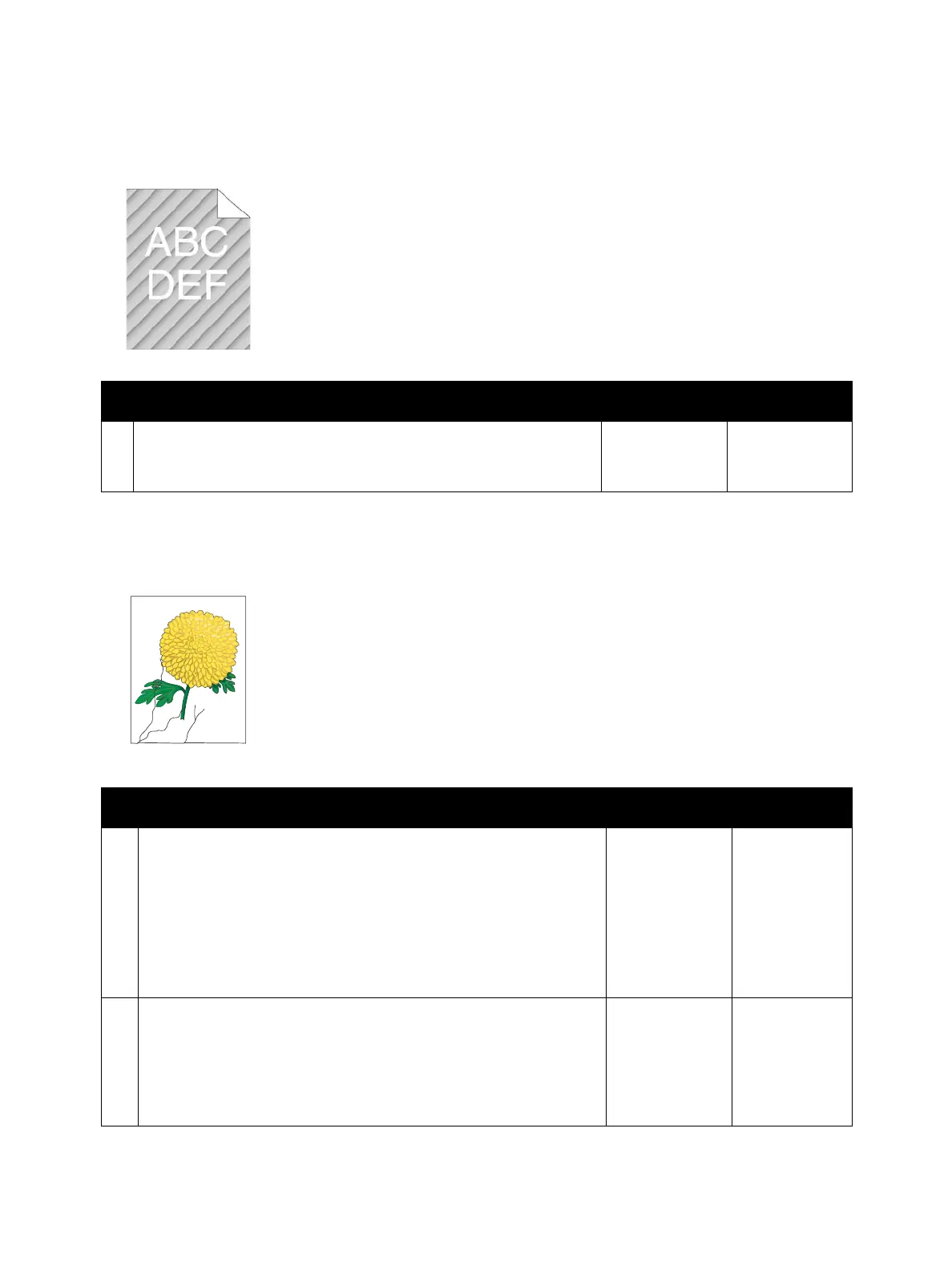

Auger mark
Wrinkled/Stained paper
Possible causative parts
•Imaging Unit Y/M/C/K (PL8.1.2/PL8.1.3/PL8.1.4/PL8.1.5)
Action Yes No
1 Replace the Imaging Units.
Does this solve your problem?
The task is
complete.
Contact Xerox
Te ch ni ca l
Support.
Possible causative parts
• Transfer Roller (PL14.1.99)
•Fuser Assembly (PL7.1.1)
• Retard Holder Assembly (PL13.3.14)
• Feed Roller Assembly (PL13.2.10)
• Retard Holder Assembly (PL10.3.3)
• TA1 Roller Assembly (PL13.1.2)
• TA2 Roller Assembly (PL13.1.3)
• Regi Chute Assembly (PL15.2.1)
• Exit Roller Assembly (PL17.1.14)
Action Yes No
1 Verify that the correct print media is being used. If not, use the
print media recommended for the printer.
Does this solve your problem?
The task is
complete.
If printing on
an envelope,
go to action 2.
If printing on
print media
other than
envelopes, Go
to action 4.
2 Check the wrinkle. Is the wrinkle within 30 mm of the four edges of
the envelope?
This type of
wrinkle is
considered
normal. Your
printer is not at
fault.
Go to action 3.
Wrinkling

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
