10. Release the harness from the Video Harness Guide (PL18.1.10).
11. Disconnect plugs P/J171, P/J311, P/J172, P/J312, P/J331, P/J213 from the three drive motors and
the interim connector from the jack inside the the Drive Assembly (PL3.1.1).
12. Release the harnesses from the clamps at the bottom of the Drive Assembly.
13. Remove the four screws (silver, 6mm) that attach the Video Harness Guide to the printer and
remove the guide.

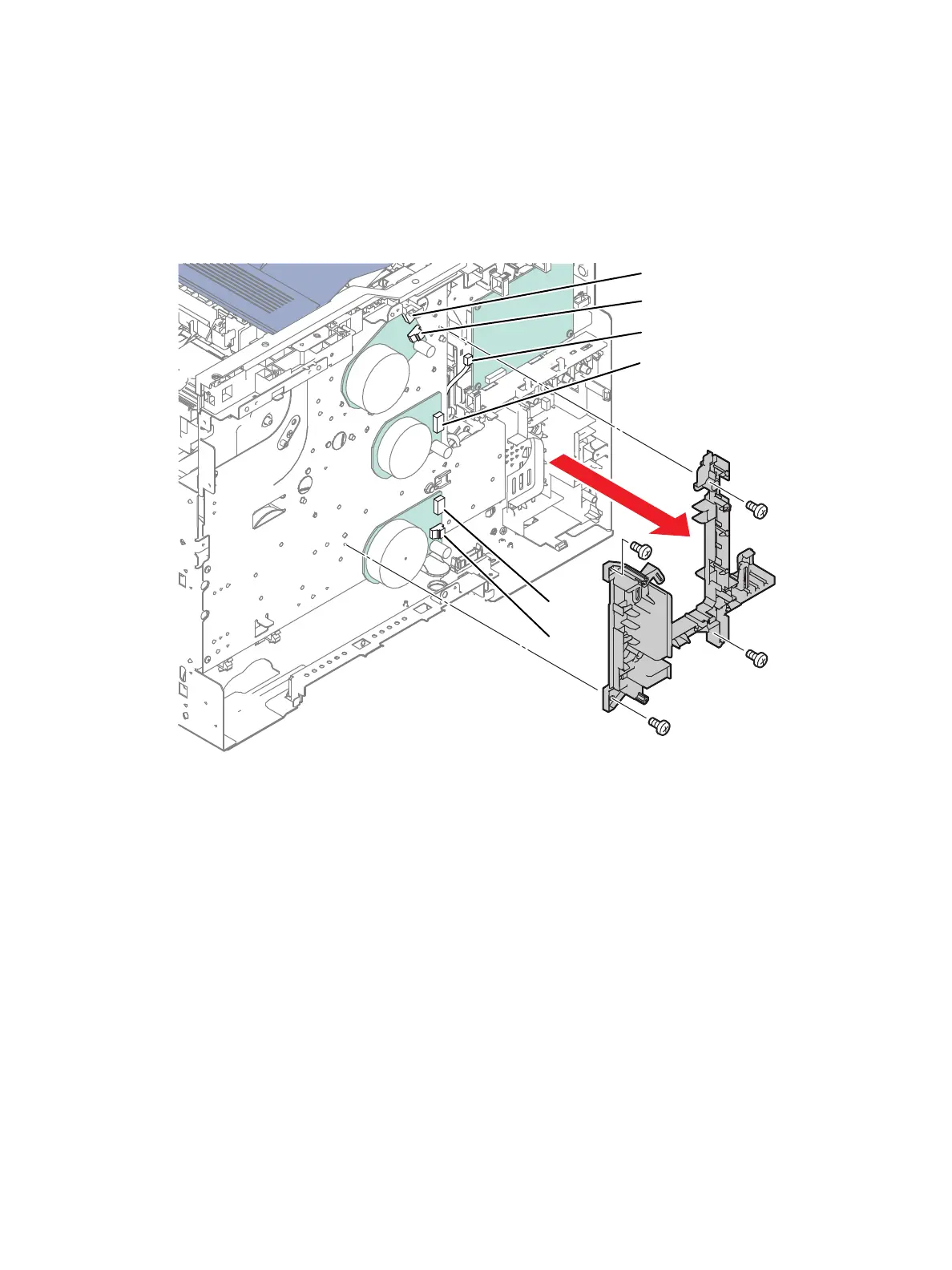

s6600-104
P/J171
P/J311
Interim Connector
P/J331
P/J172
P/J312
