Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-15

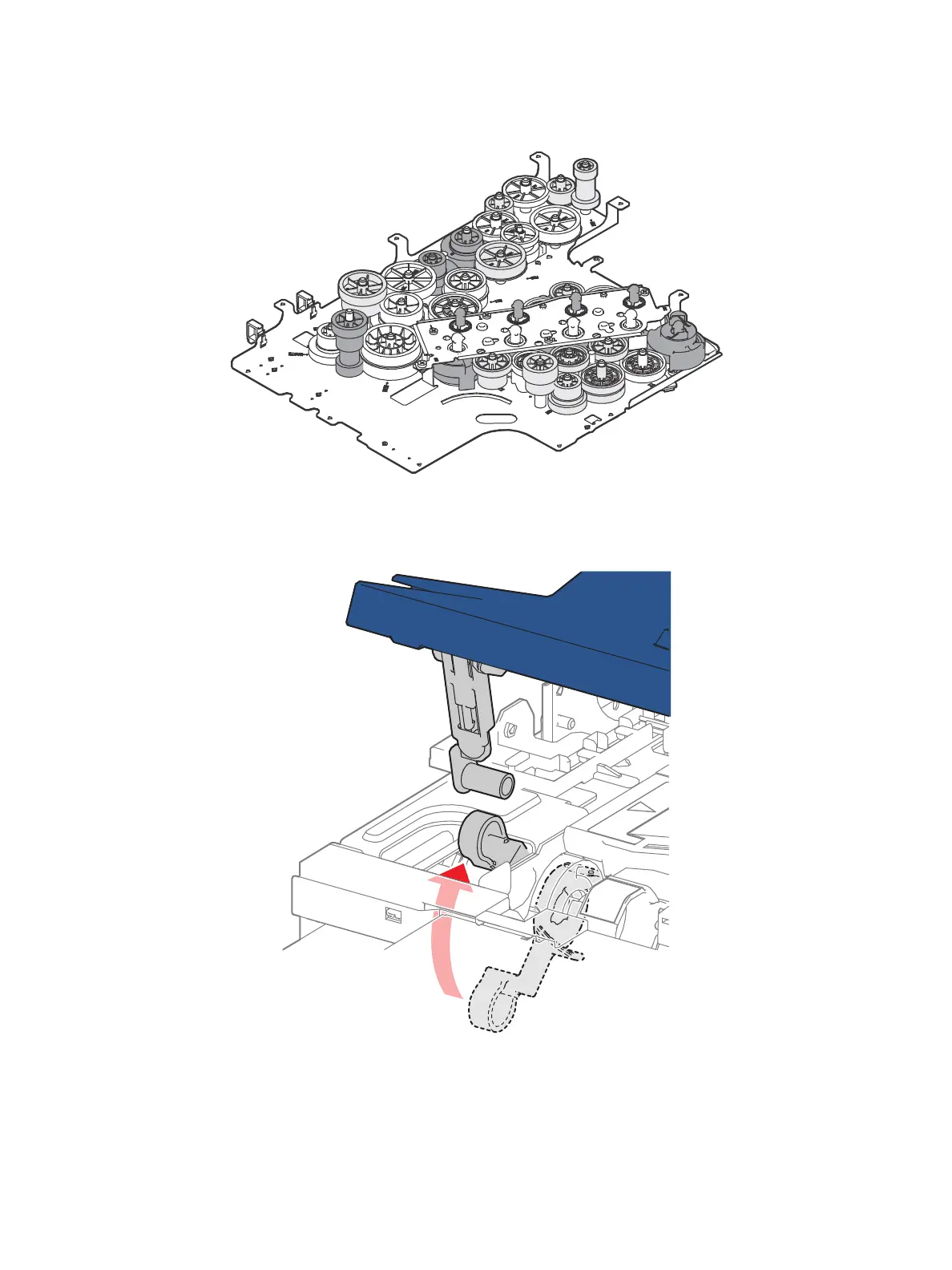

Note: The following figure shows how the gears are installed to the Drive Assembly.
Replacement Note: If the installation hole of the Transfer 2 Link for the Transfer Link Coupling is
lowered, raise it by accessing the Transfer Link Coupling from inside the frame.
s6600-106
s6600-136
