Xerox WorkCentre 6605

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-96

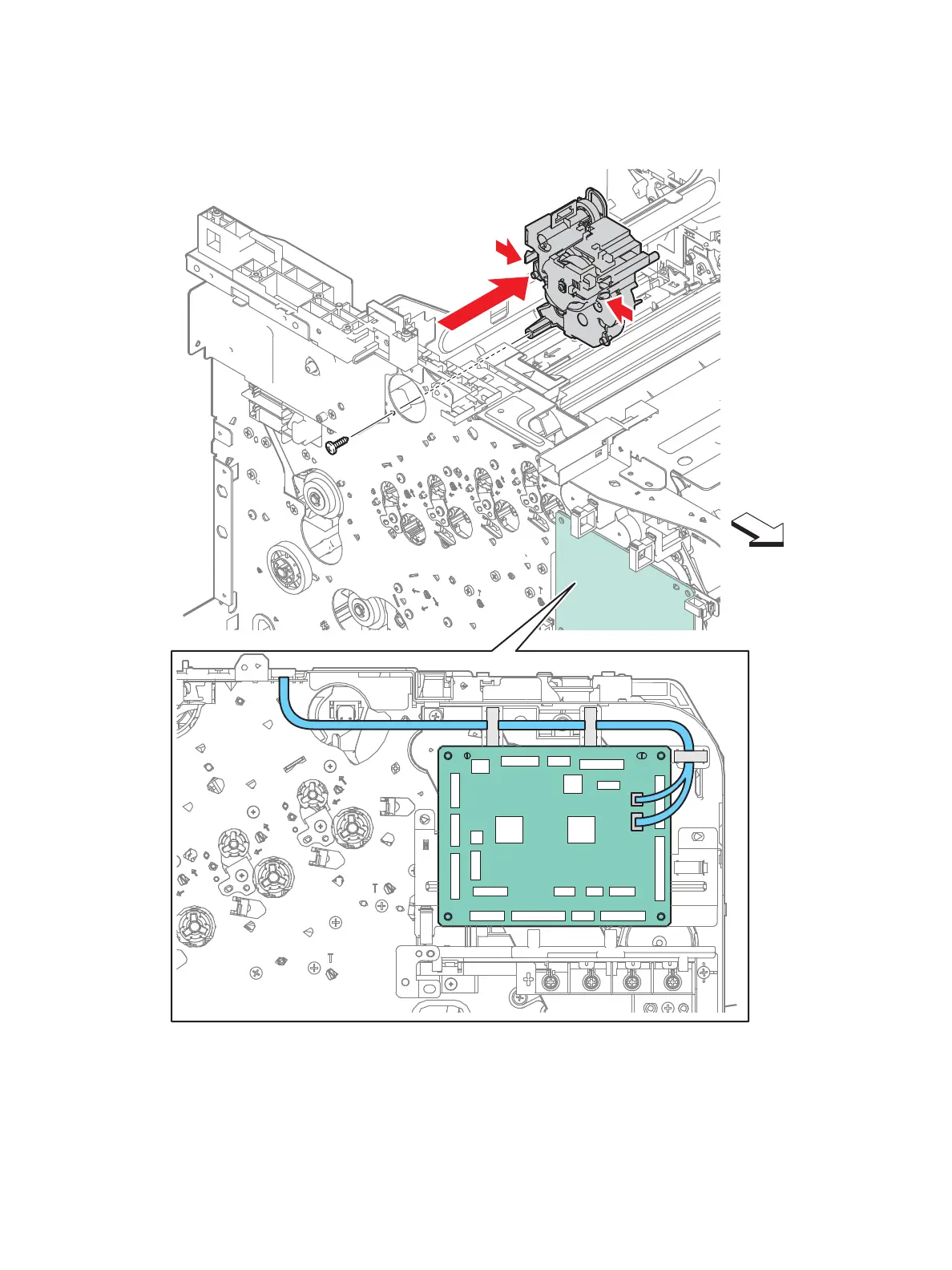

9. Remove the screw (silver, tapping, 8mm) that attaches the Exit Drive Assembly.
10. Release the two latches holding the Exit Drive Assembly and remove the exit assembly.
s6600-086
Front
