Xerox WorkCentre 6605

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-117

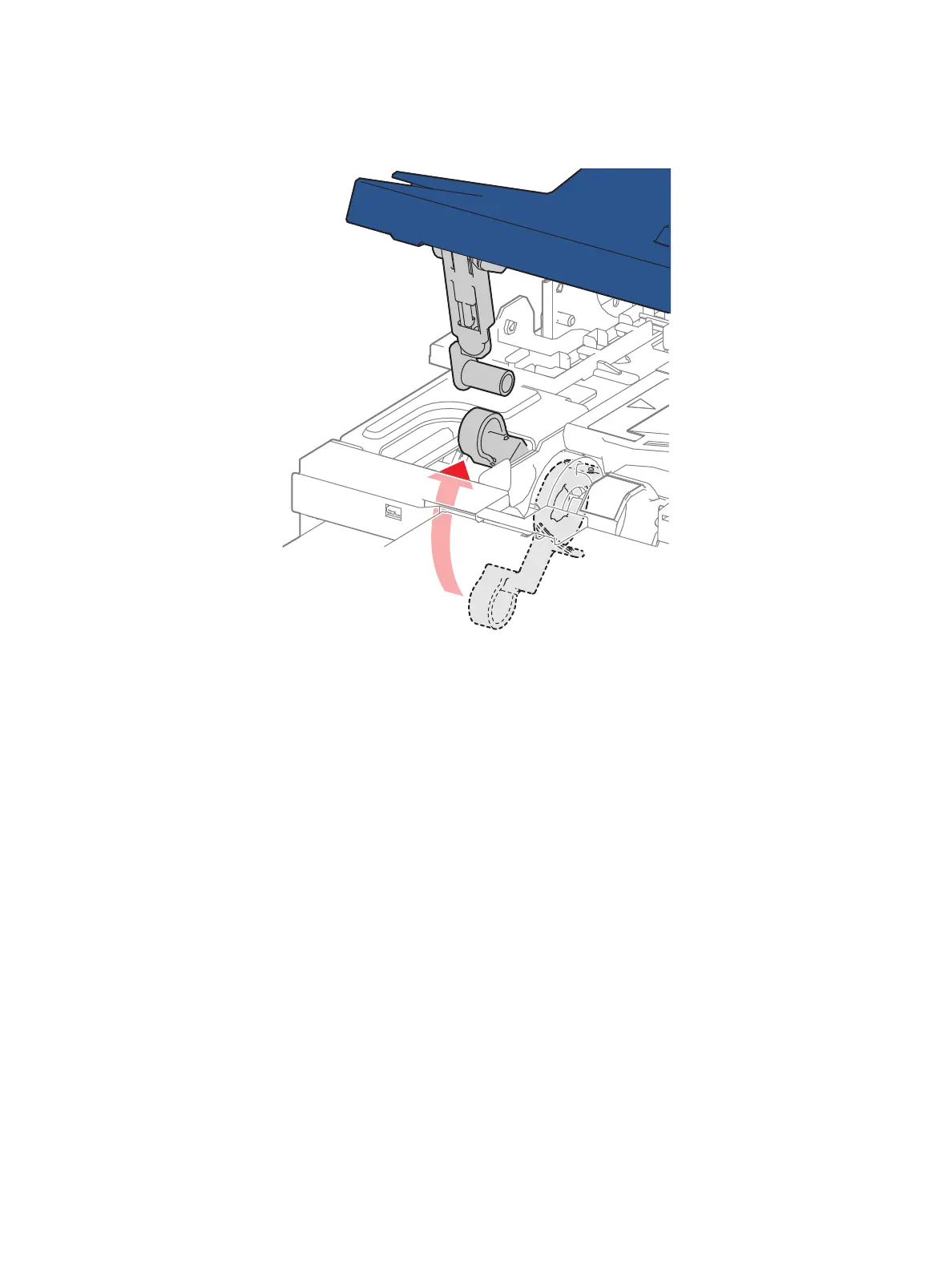

Note: When the installation hole on the Transfer Link Coupling for the Transfer 2 Link is retracted,
raise it by accessing the Transfer Link Coupling from inside the frame.
s6600-136
